T3 S3 LR1121

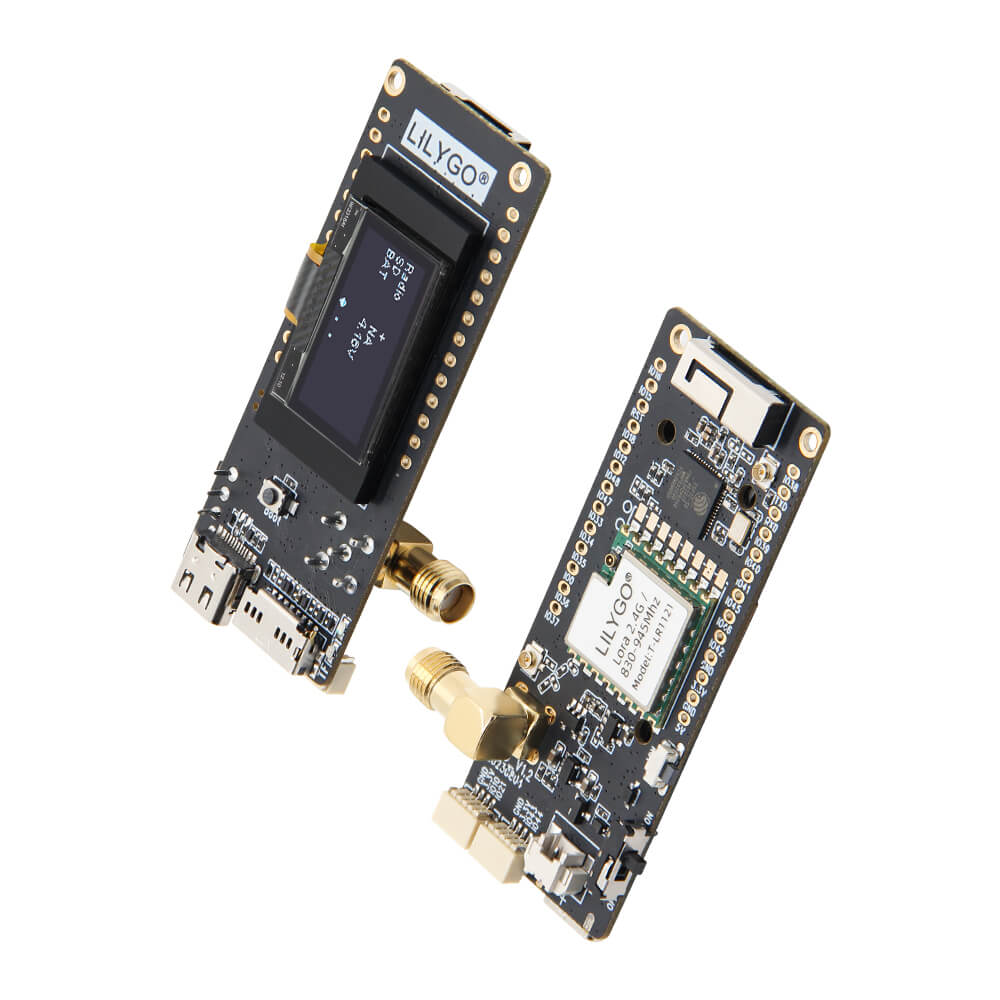

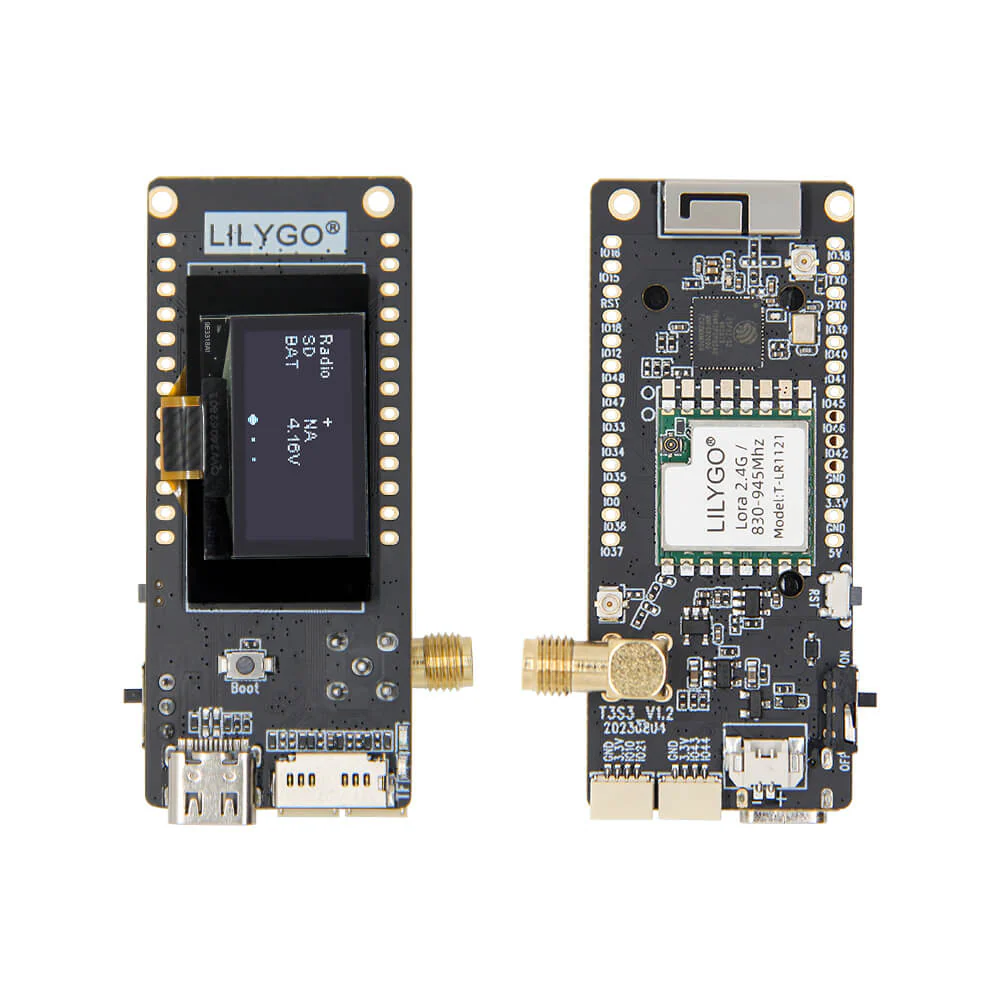

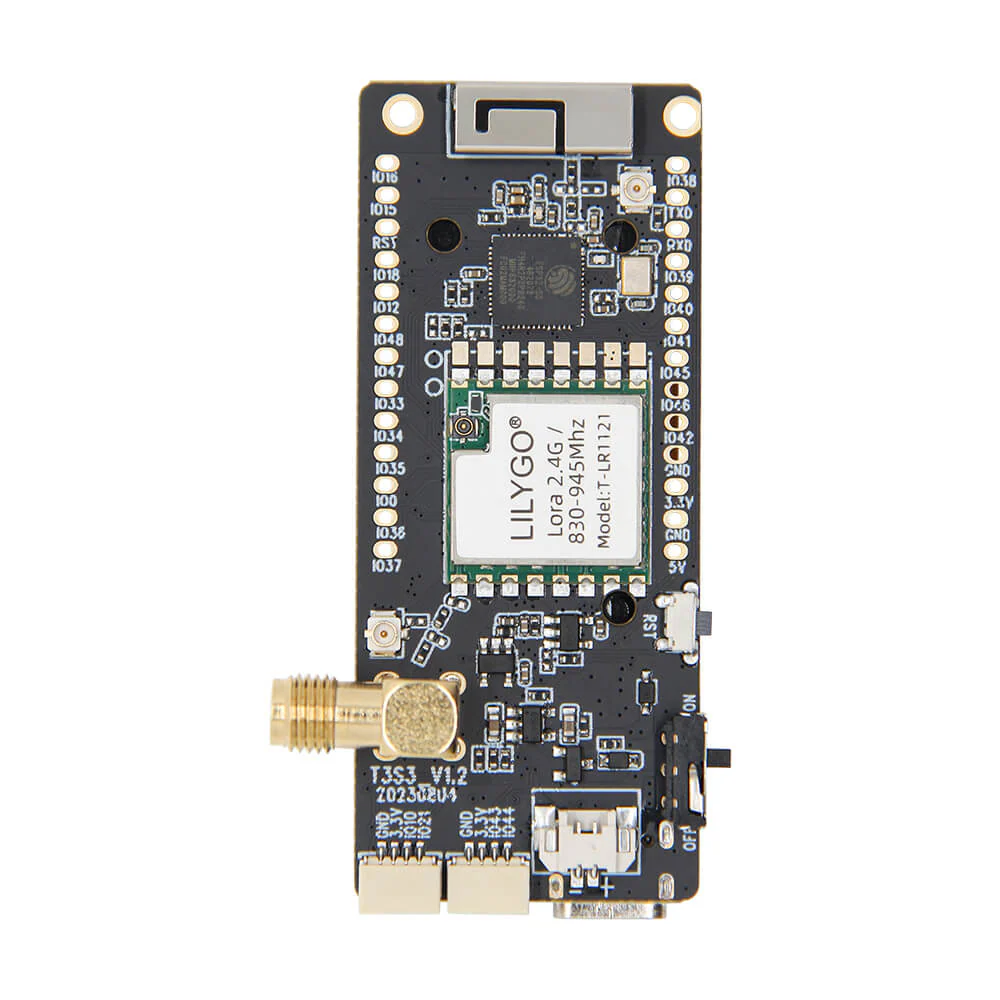

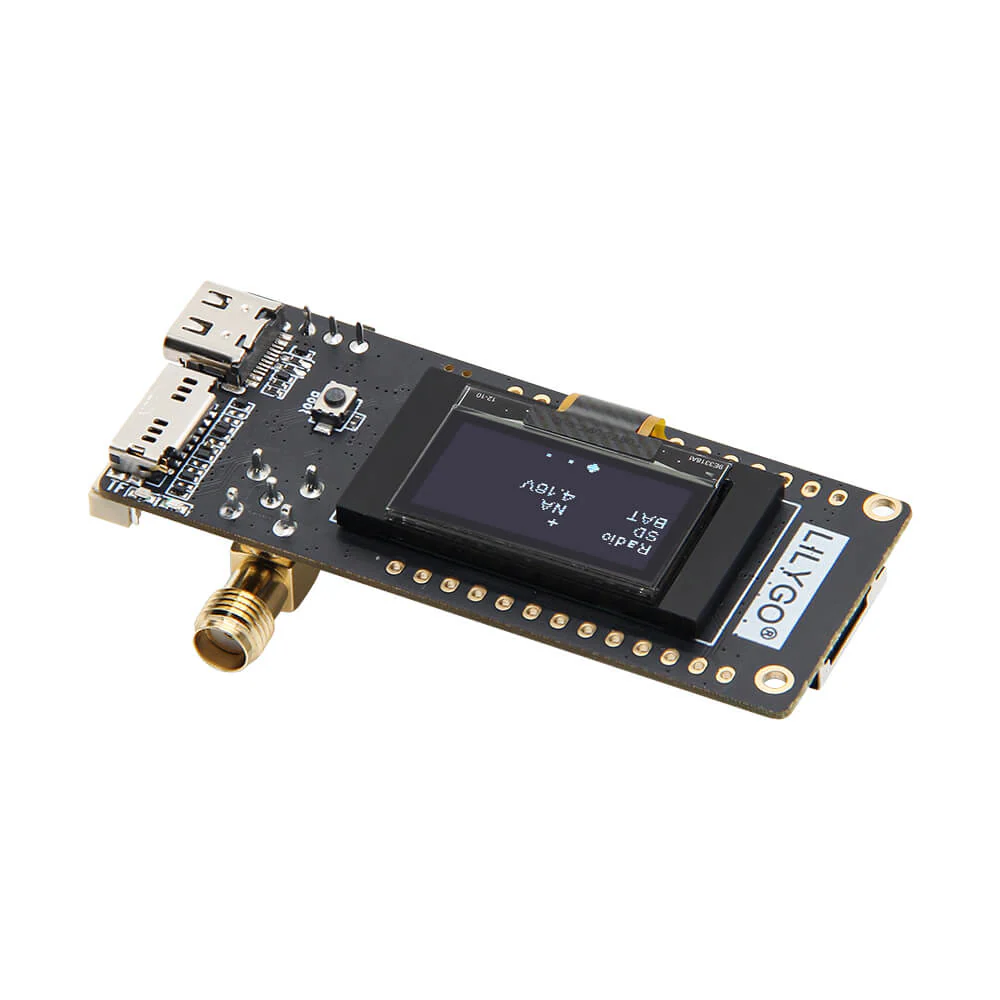

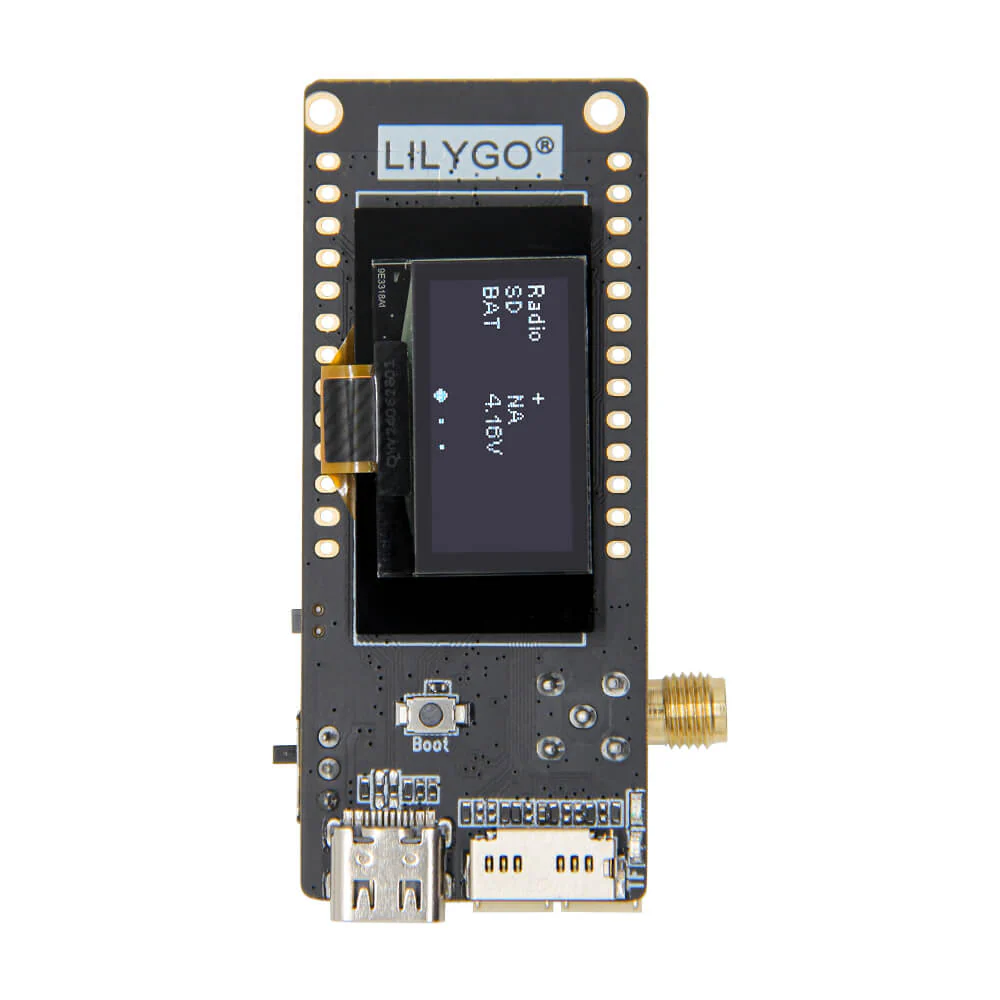

T3 S3 LR1121

Specifications

MCU ESP32S3FH4R2
Flash 4MB
PSRAM 2MB
Size 66 X 36MM
USB Charging 500MA 5V
Wireless protocol  Wi-Fi + Bluetooth 5.0
Onboard functions Reset + Boot Button, Support TF Card

0.96 inch SSD1306 Driver I2C OLED

Resolution  128x64
I2C interface SDA--IO18 SCL--IO17

--- LILYGO GitHub Support ---



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

 🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.
