T-SIM7000G

 Specifications

MCU	ESP32
Flash	4MB
PSRAM	8MB
Serial Chip	CH9102
REGION	Global
LTE&GSM	SIM7000G
Wireless protocol	Wi-Fi + Bluetooth 4.2 3D WiFi antenna[Use by default]

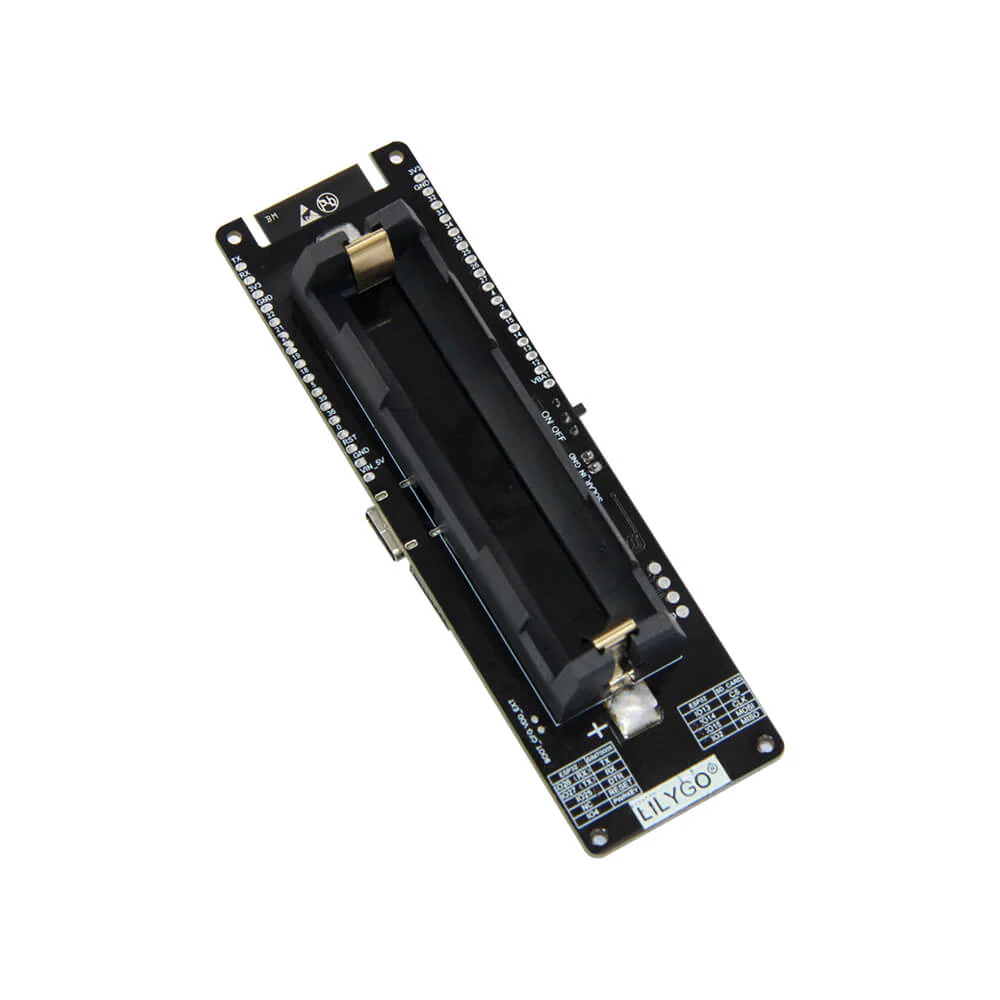

Power Supply Mode	USB Type-C / 18650 battery holder / 2pin Solar charging cable interface
Support	TF card , Nano SIM card[2G], GPS



Technology Support [Github]

If you need technical support please check the link to find more details.

T-SIM7000G

1. Size

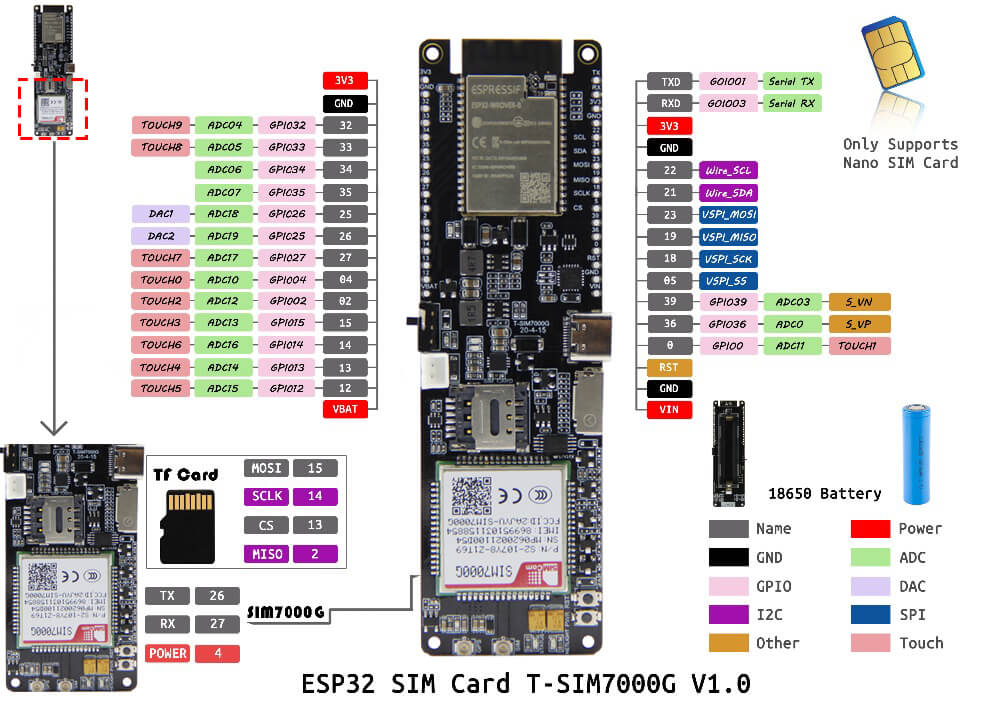

2. Pin Diagram

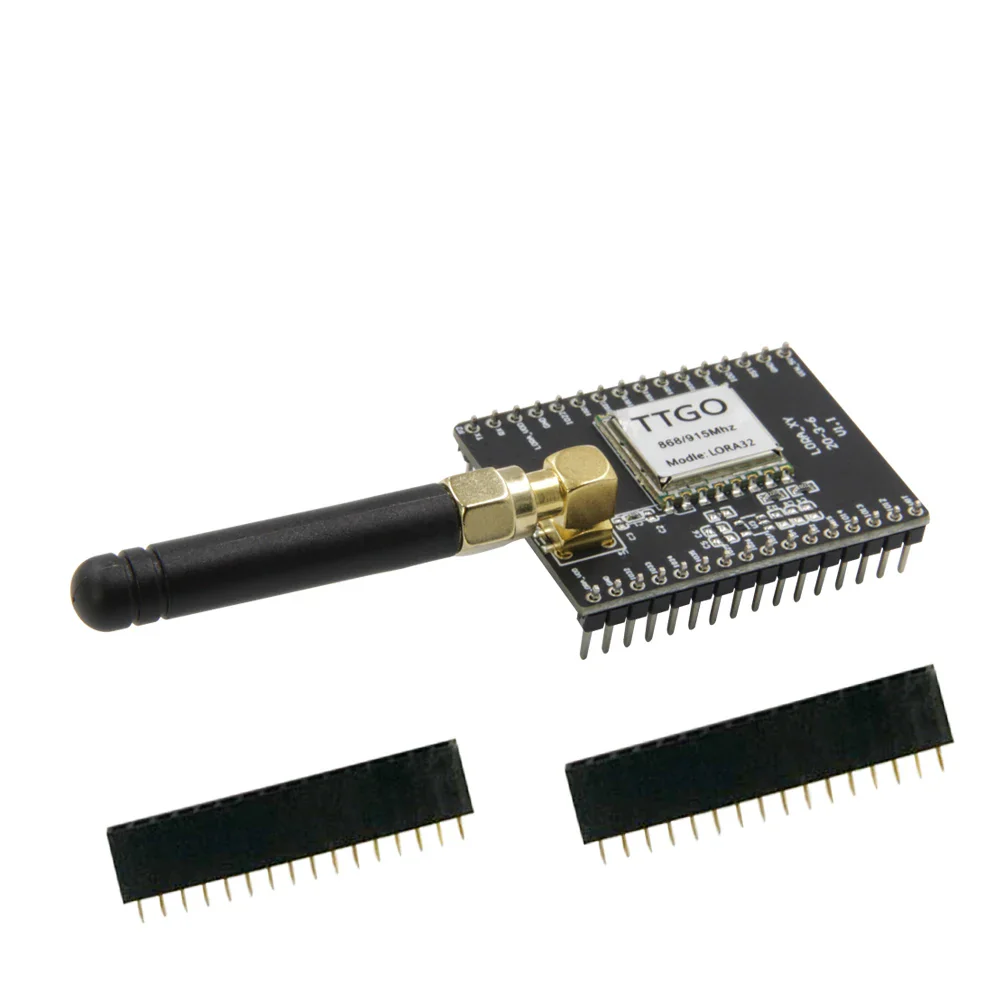

It can be used with Lora 868/915Mhz function Shield to send and receive data over a long distance with low power consumption[Product link will be updated here soon..].

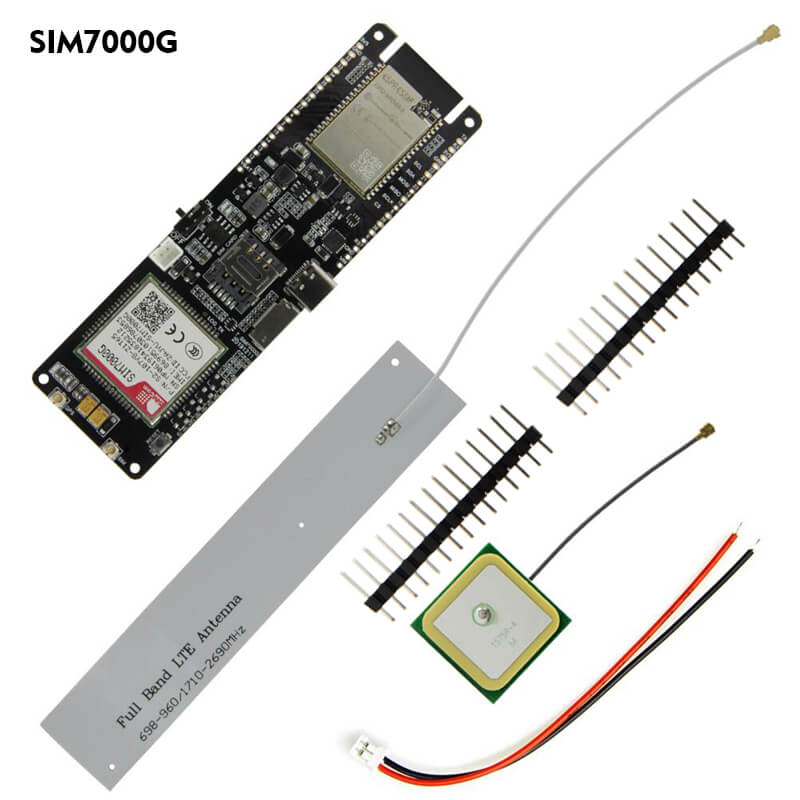

• 1x T-SIM7000G

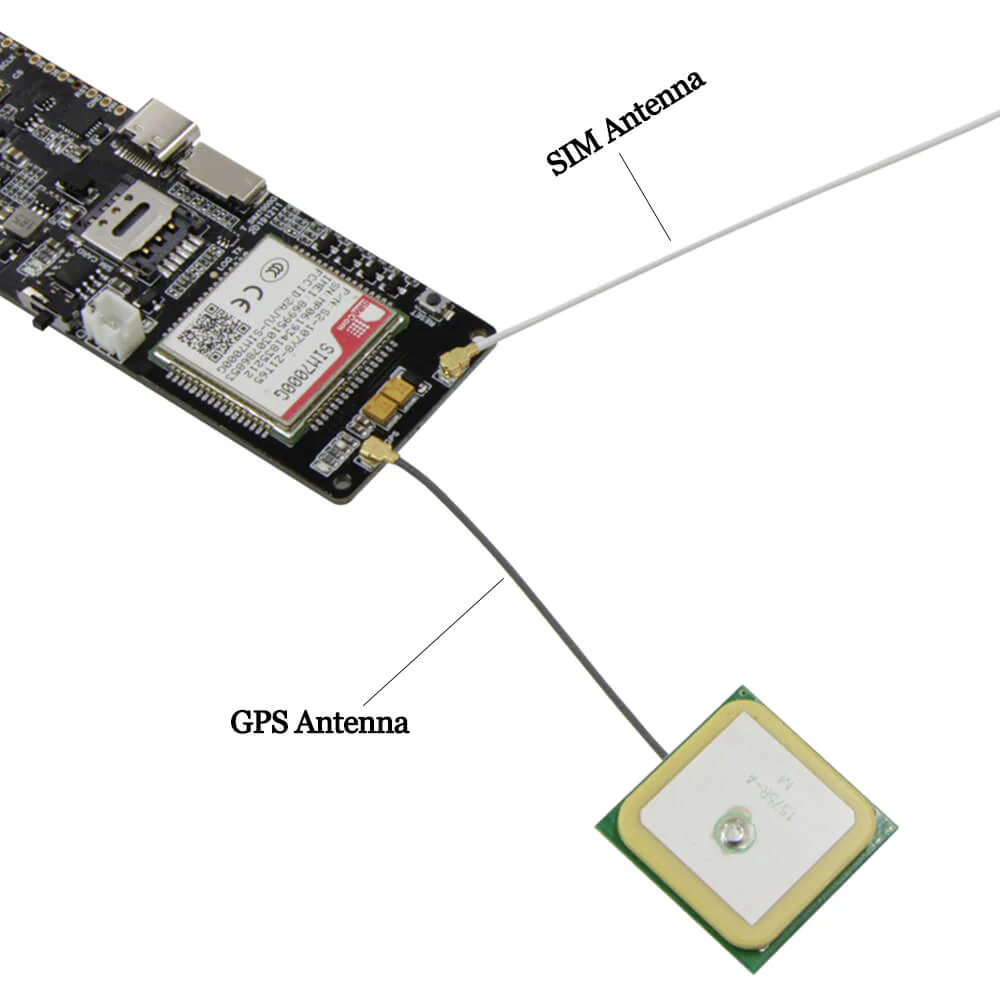

• 1x SIM antenna
• 1x GPS antenna
• 1x Power cable
• 2x Pin

(Notice: The shipping list does not include TF card and SIM card）
