T-Watch Ultra

T-Watch Ultra

Specifications

MCU ESP32-S3
FLASH 16MB
PS RAM 8MB
Platform Arduino-IDE, ESP-IDF, VS Code, Micropython
Wireless Wi-Fi: 802.11 b/g/n; BLE V5.0
Onboard Functions PMu Microphone, MAX98357A
RTC, NFC,Vibration Motor, SD Card, GNsS, Self-learning Al
LoRa Transceiver SX1262
DRV2605 Haptic Driver Motor for ERM and LRA
AXP2101 Highly Integrated Power Management Unit

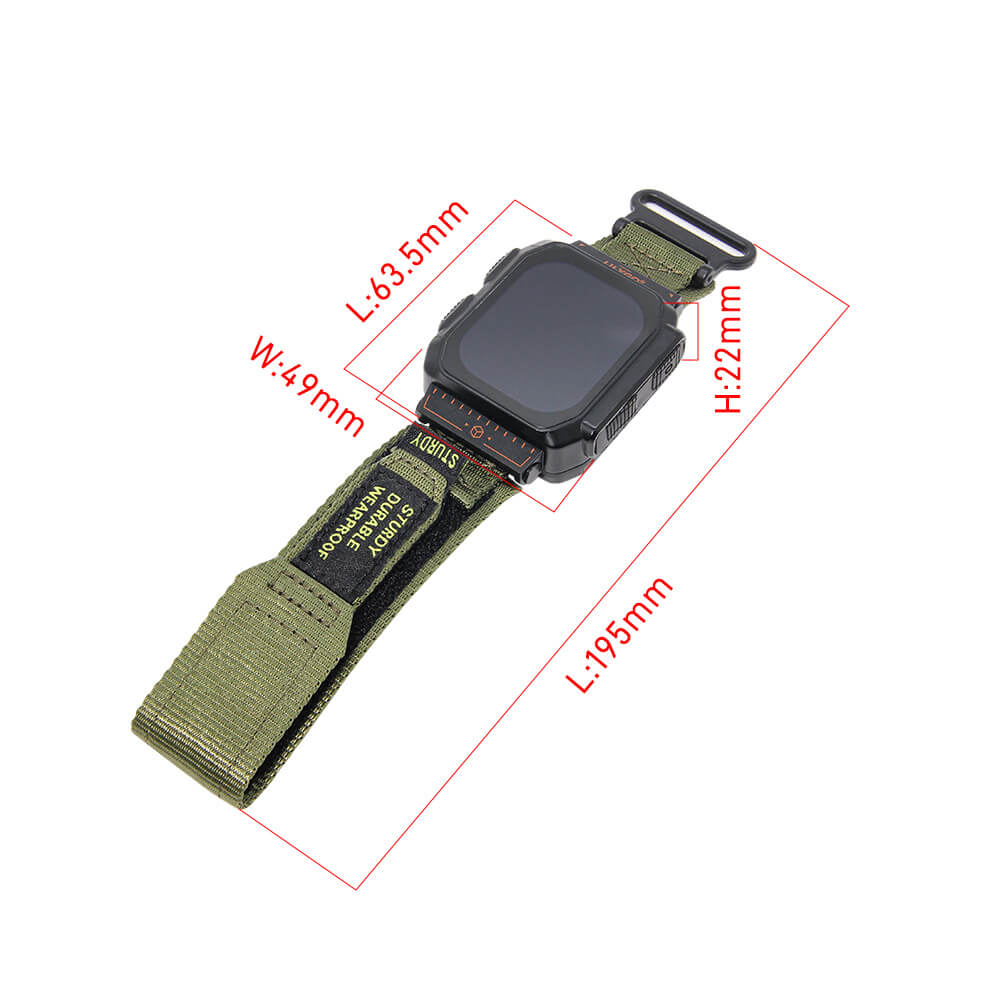

Dimension 49 x 63.5 x 22 mm
Battery 1100mA (4.07 Wh)

2.06 inch CO5300 (QSPI) AMOLED--With Capacitive touch CST9217 function

Resolution  410 x 502
Display Colors 16.7M

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community and post a description of the problem, and our engineers will help you directly.
