T-SIM7000E

Specifications

MCU	ESP32
Dimensions	24*24*2.6mm
Flash	4MB
PSRAM	8MB
Serial Chip	CH9102
REGION	Europe
LTE&GSM	SIM7000E
Wireless protocol	Wi-Fi + Bluetooth 4.2 3D WiFi antenna[Use by default]
Power Supply Mode	USB Type-C / 18650 battery holder / 2pin 2.0mm Solar charging cable interface
Support	TF card , Nano SIM card[2G], GPS



Technology Support [Github]

If you need technical support please check the link to find more details.

For reference only : T-SIM7000G

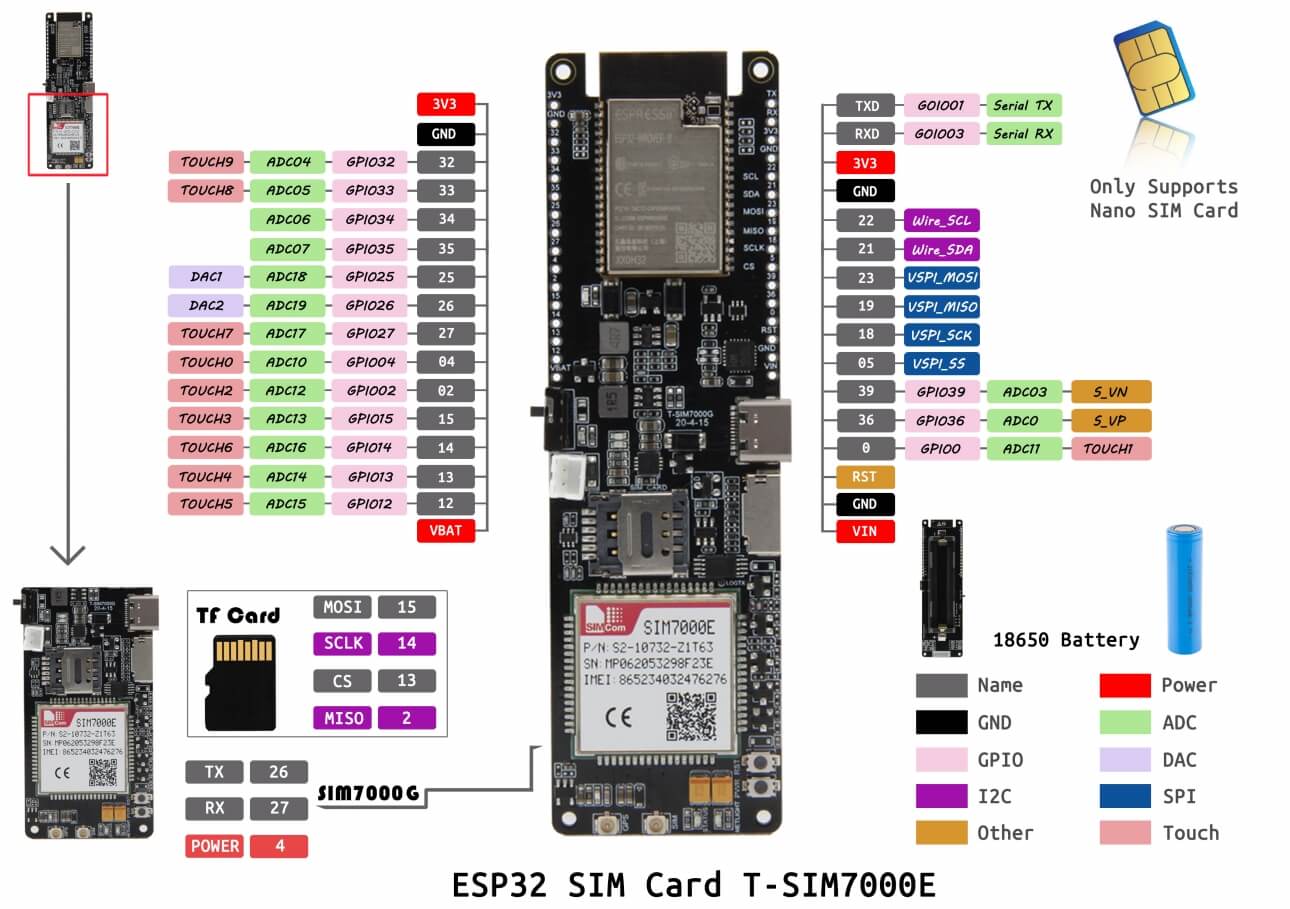

1. Pin Diagram

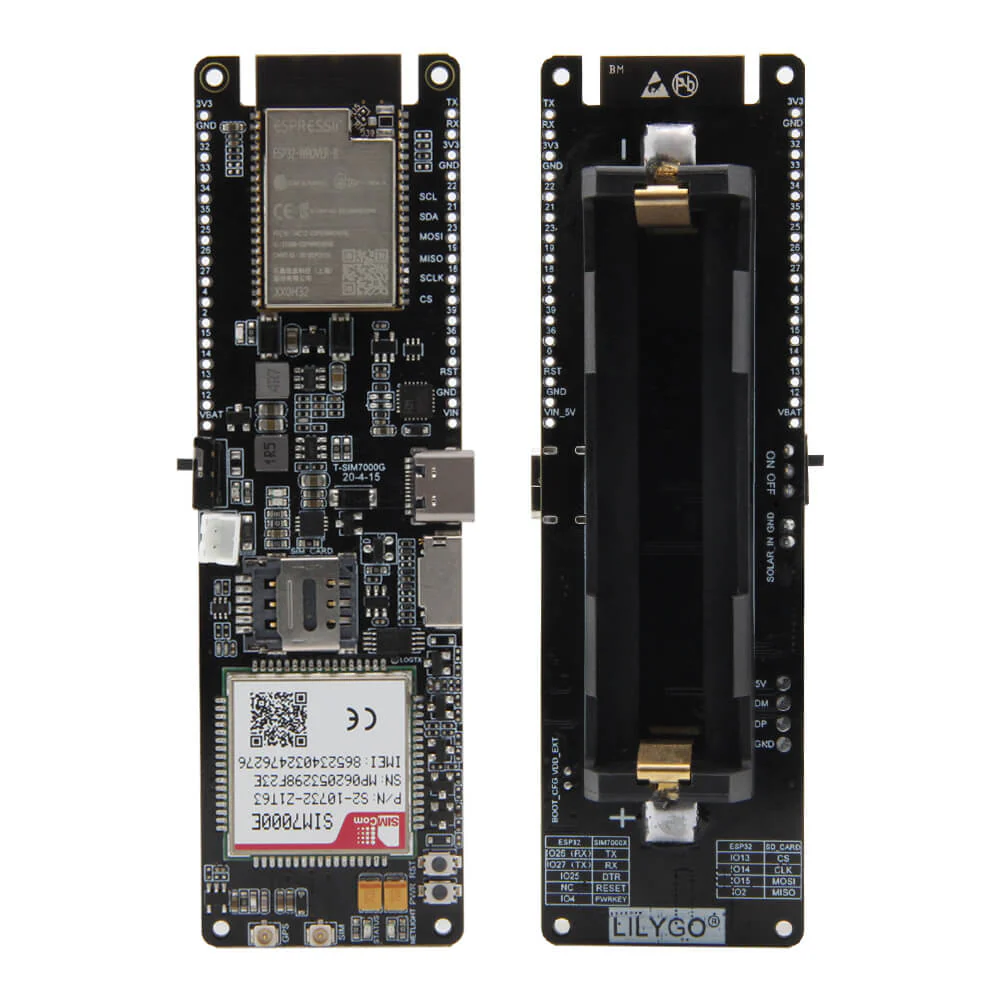

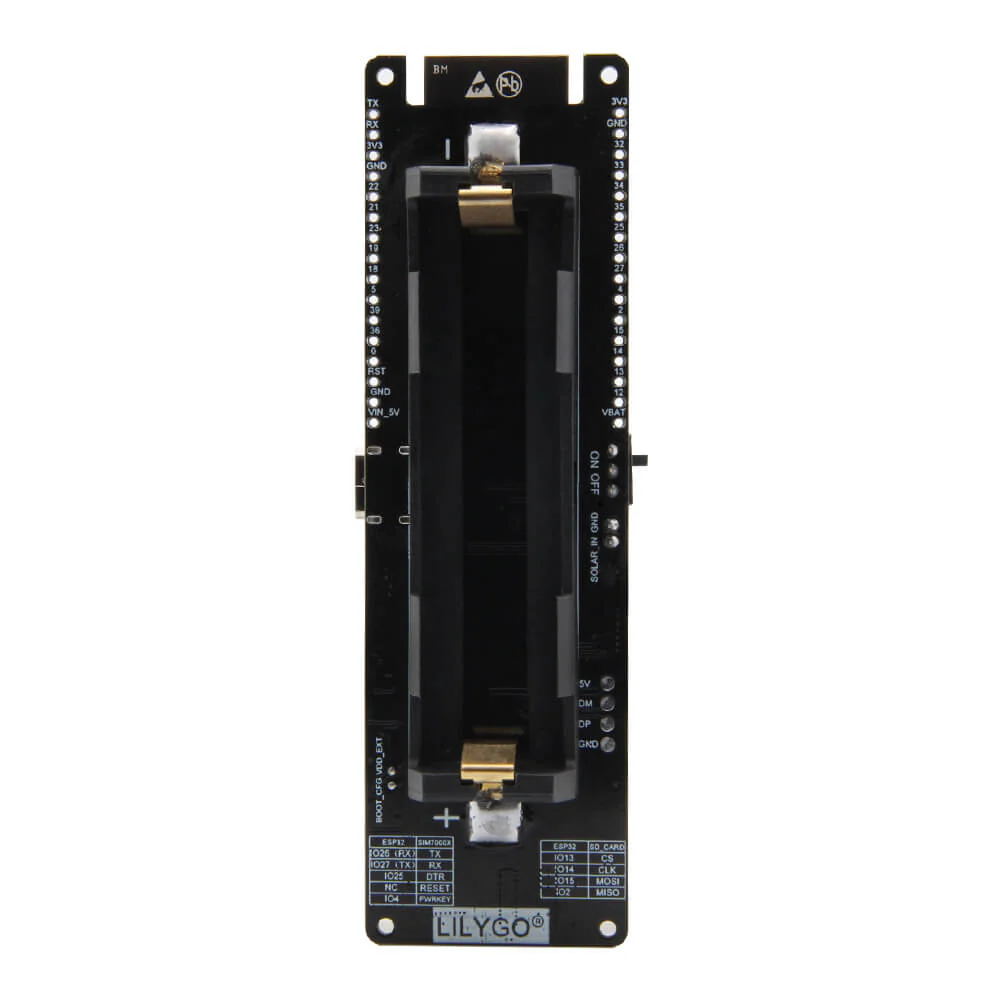

2. Appearance

Notice: The solar interface can be used as a 5V power interface

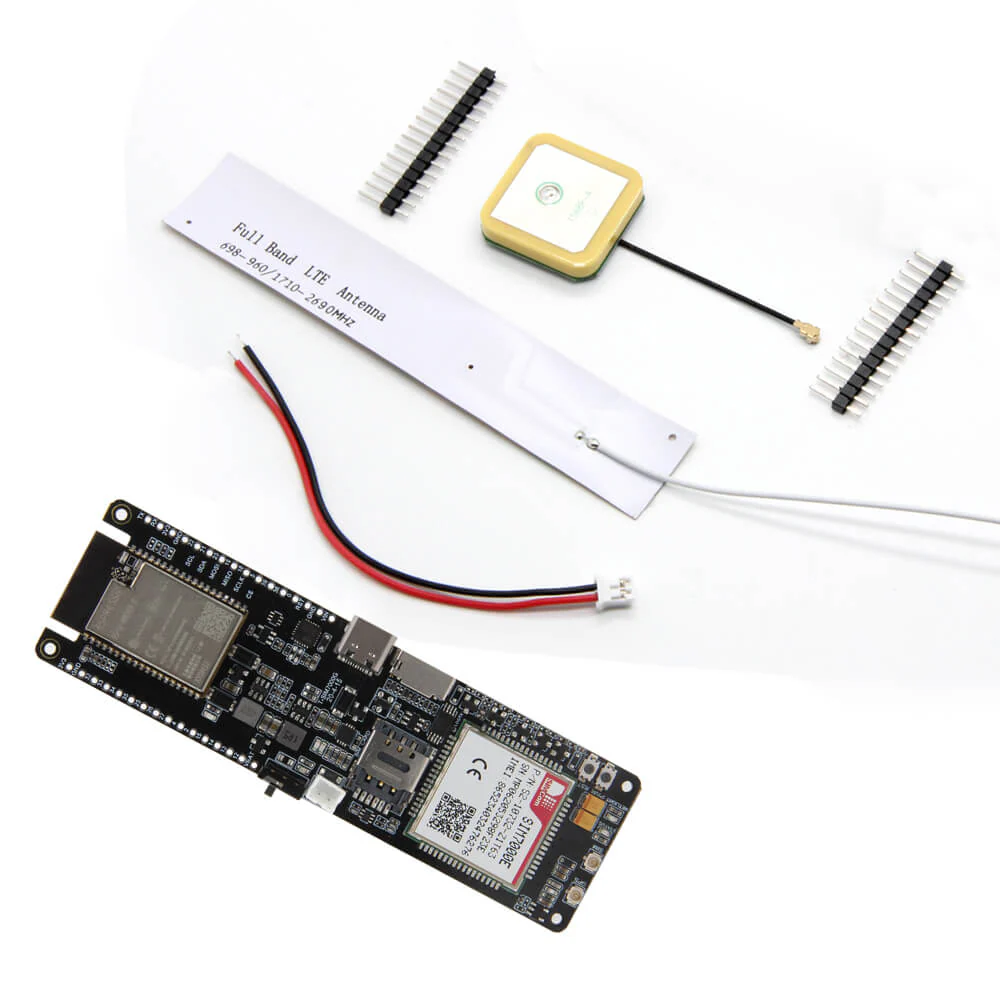

• 1 X T-SIM7000E Module
• 1 X LTE Antenna
• 1 X GPS Antenna
• 1 X Power Cord
• 2 X Pin Header
