T-SIM7670G S3

T-SIM7670G S3

Model Comparison

Click here [GitHub] to see a comparison of more models.

Item Specifications
MCU ESP32-S3
LTE&GSM SIM7670G
SIM Card ✓
TF Card ✓

ESP32-S3

Item Specifications
Clock Speed 240MHz
Flash 16MB
PSRAM 8MB
Wireless Connectivity 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE)
Peripheral Interfaces I2C, SPI, UART, SDIO, I2S, CAN

SIM7670G

Item Specifications
Form Factor LCC+LGA
REGION G:Global
Dimensions 24.0*24.0*2.4mm
Power Consumption TBD
Data Transfer
  • Download Speed: 10Mbps
  • Upload Speed: 5Mbps
GNSS Support
Protocol

TCP/IP/IPV4/IPV6

Multi-PDP/FTP/FTPS/HTTP

HTTPS/DNS/MQTT
Android RIL Android 5.0/6.0/7.0/8.0/9.0
USB Driver Microsoft Windows 7/8/10, Linux, Android
Supply Voltage 3.4~4.2V
SIM Card 1.8V/3.0V

Frequency Bands

 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/

B13B18/B19/B20/B25/B26/B28/B66

LTE-TDD: B34/B38/B39/B40/B41

Tech Support

ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

Certificates:

FCC/GCF/PTCRB/UKCA/CERED/RCM/IC/NCC

KC/TELEC/JATEANATEL3C/CTA/SRRC/RoHS/REACH

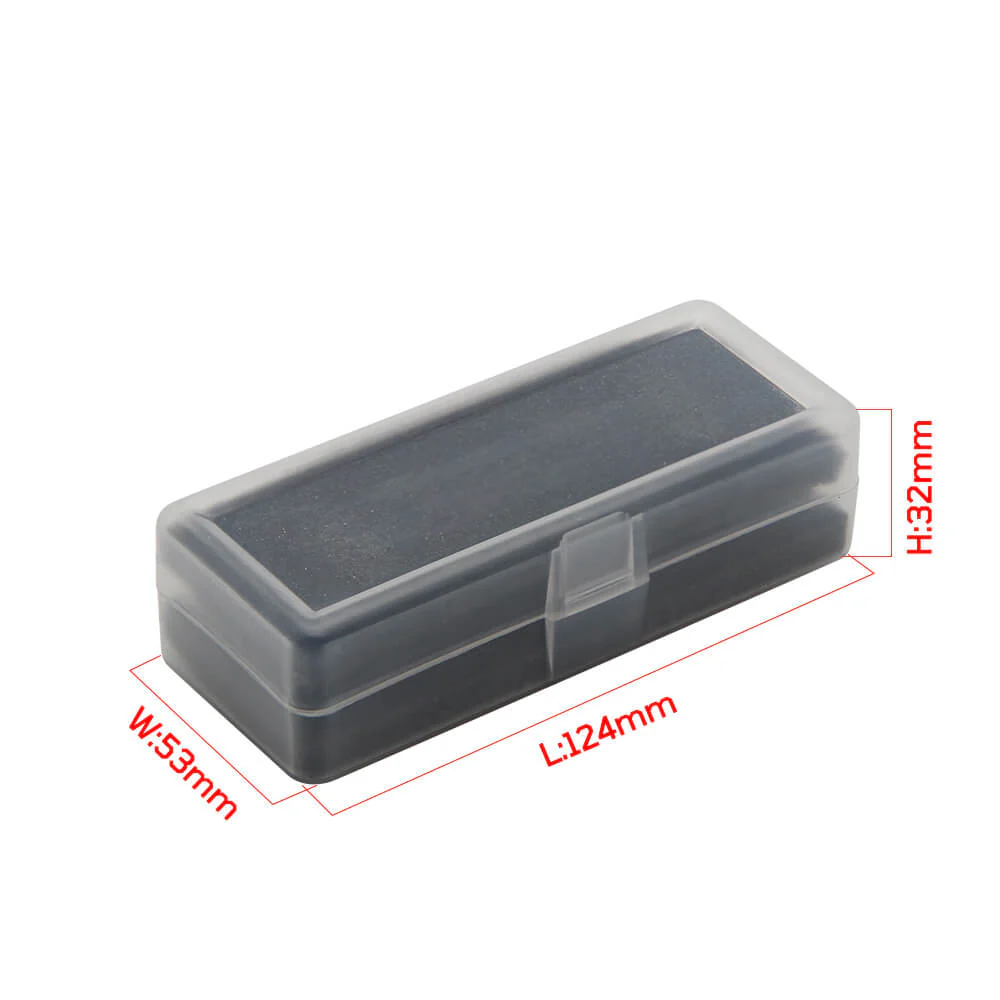

What's In The Box

If T-SIM7670G S3 version

If T-SIM7670G S3 Standard version

Select Version
From $12.61

Original: $36.02

-65%
T-SIM7670G S3—

$36.02

$12.61
