T-Lora Pager

T-Lora Pager

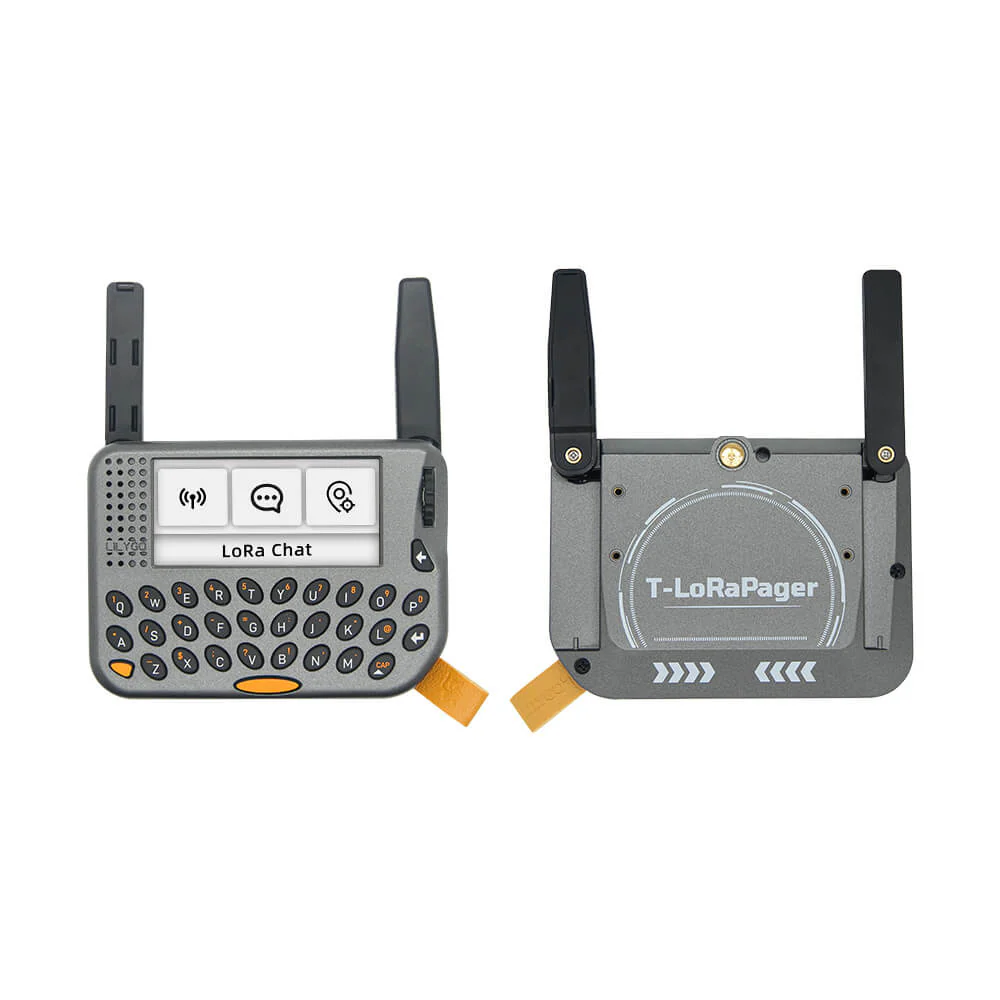

Available in Gray and Space Gray.

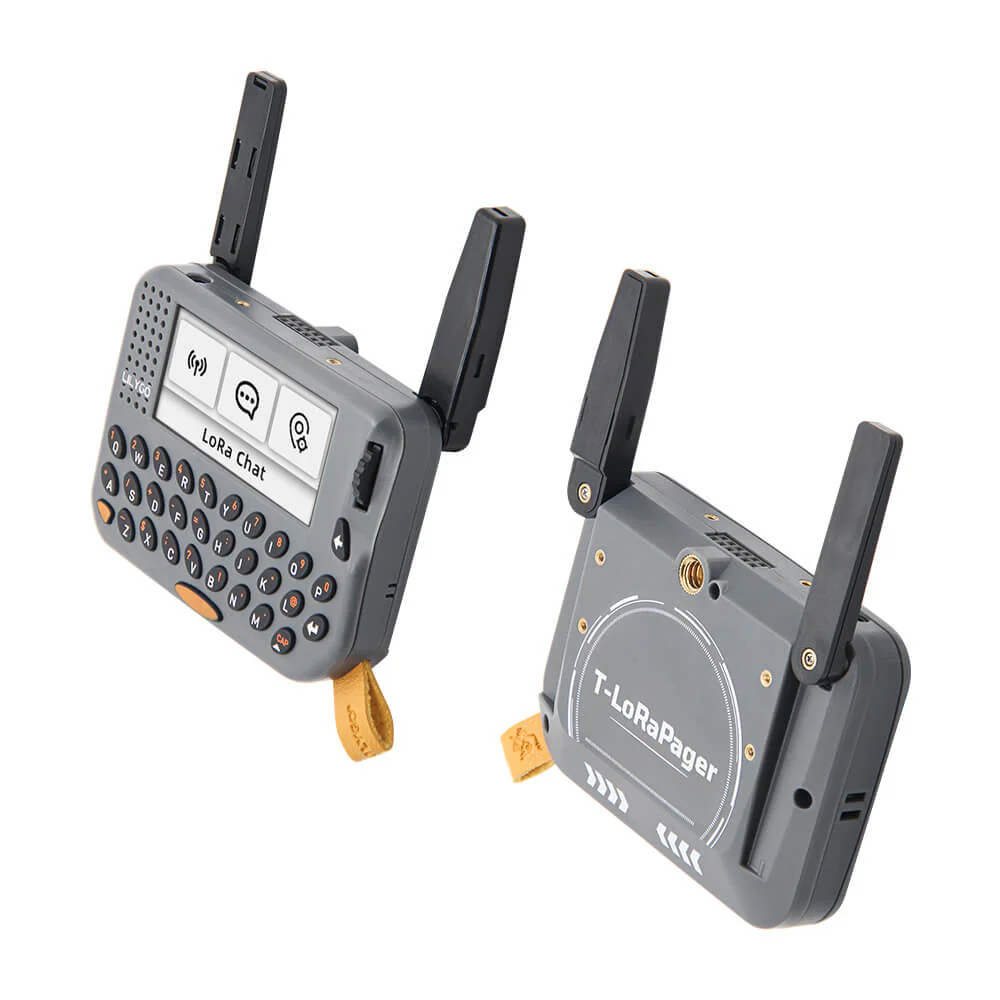

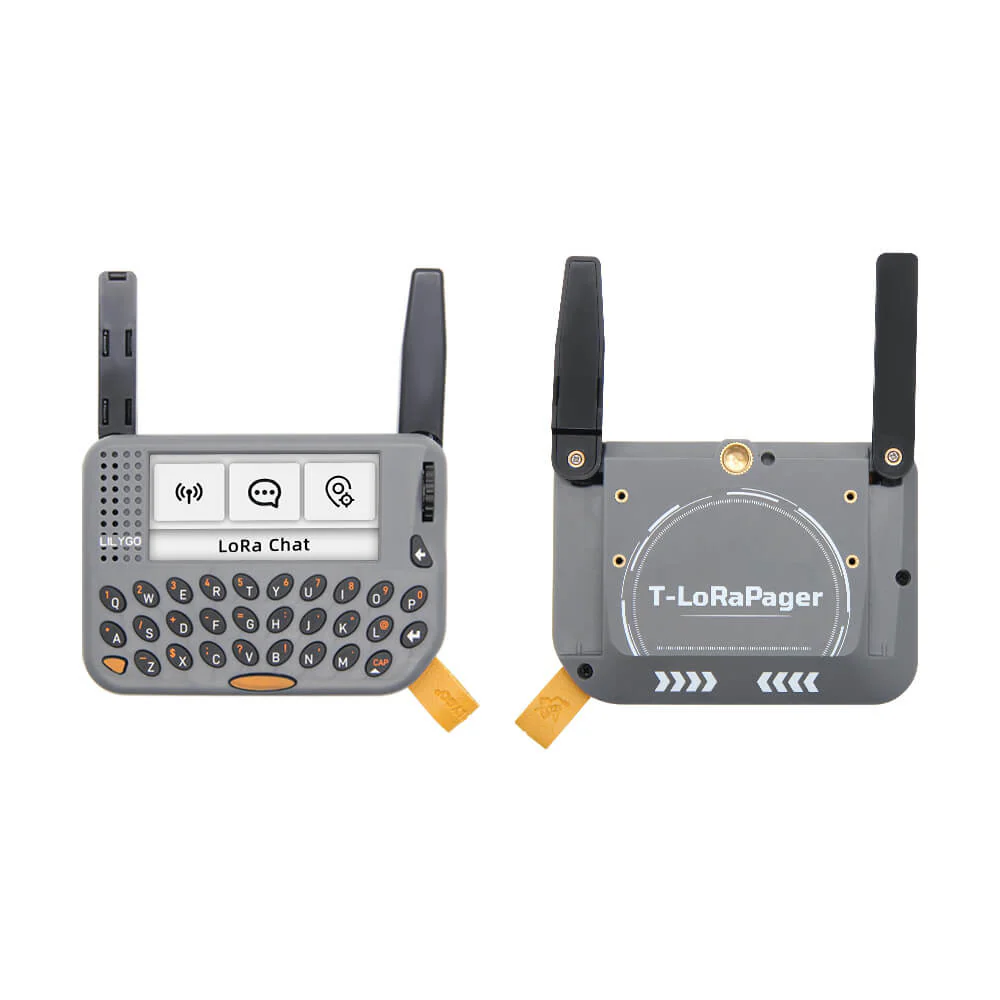

T-Lora Pager is the new member of the LILYGO T series, the compact exterior and foldable external antenna design, fully utilize the wireless performance while keeping the device aesthetically pleasing.

UI Demo

  • Built-in UI demo designed by LILYGO supports smooth interaction through encoder.
  • Based on the demo, you can learn to develop programs for different application. scenarios.

Core Functions Overview

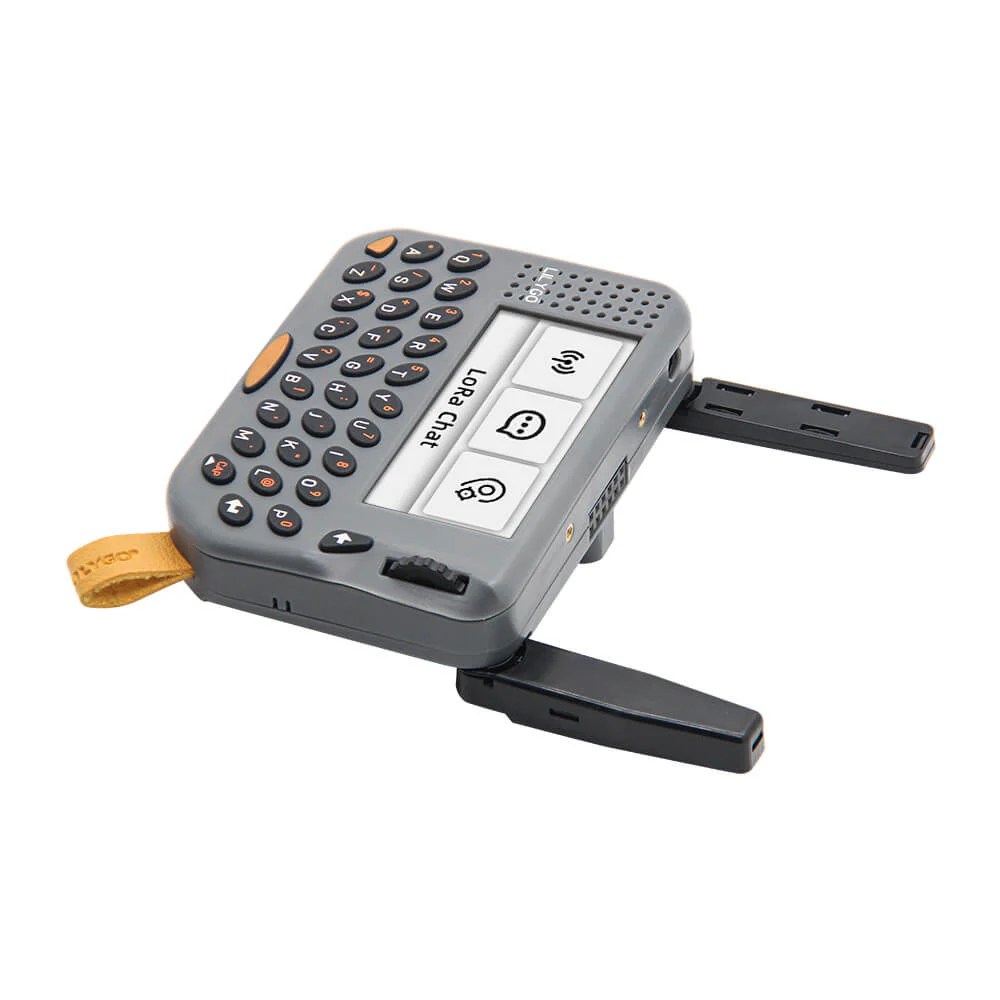

  • QWERTY keyboard
  • AI support IMU (BHI260AP)
  • 2.33-inch long screen (222 x 480 resolution)
  • U-blox GPS module (MIA-M10Q)
  • RFID/NFC + RTC circuitry
  • TI Power Management Monitoring Chipset
  • ES8311 (microphone/speaker/headphone jack)
  • Encoder + Keypad

Specifications

MCU ESP32-S3
Flash 16MB
PSRAM 8MB
Development Arduino-IDE,VS Code,ESP-IDF
Board Function RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard
Size 106 x 89x 23mm
USB Charging 5V, 500MAH

Tech Support



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

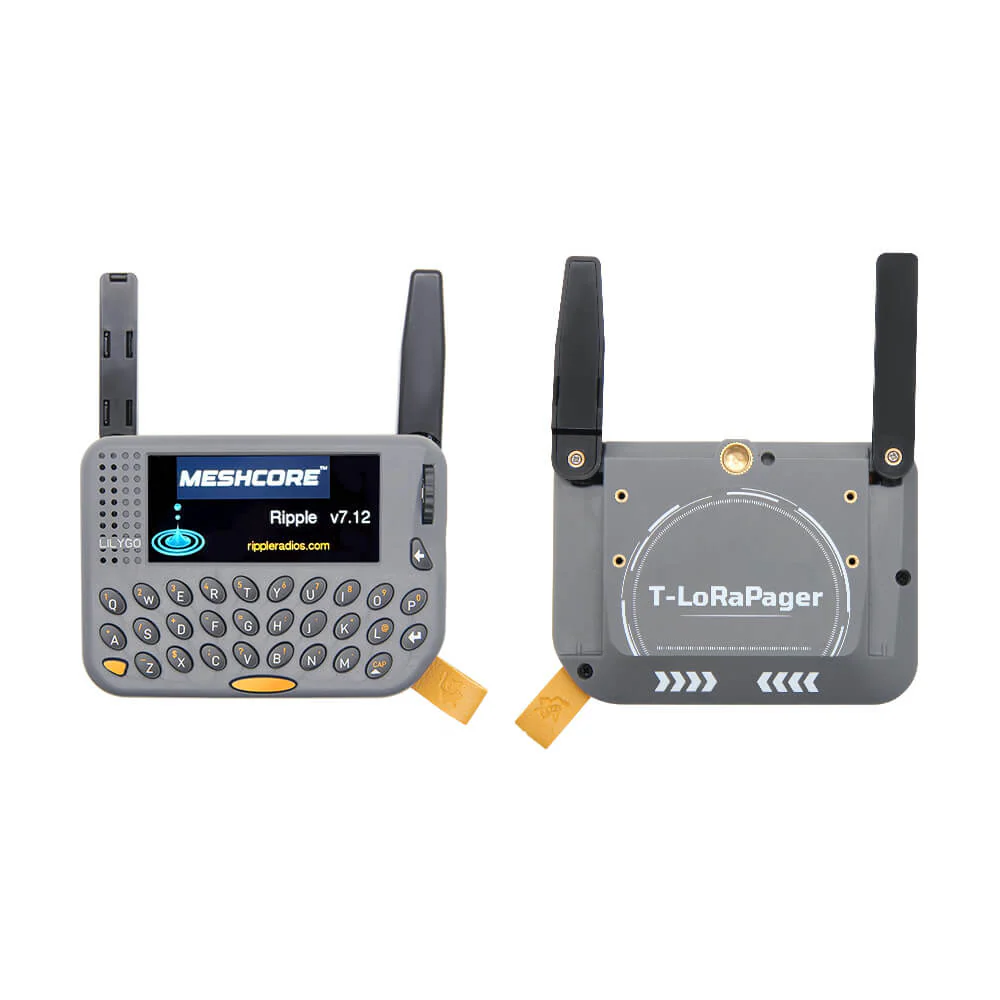

ℹ️Meshcore
A new lightweight, hybrid routing mesh protocol for packet radios


Shipping List of T-Lora Pager [433/ 868 /915 MHz/ With LR1121 Module]:

Shipping List of 24L01 2.4G Shield only :
