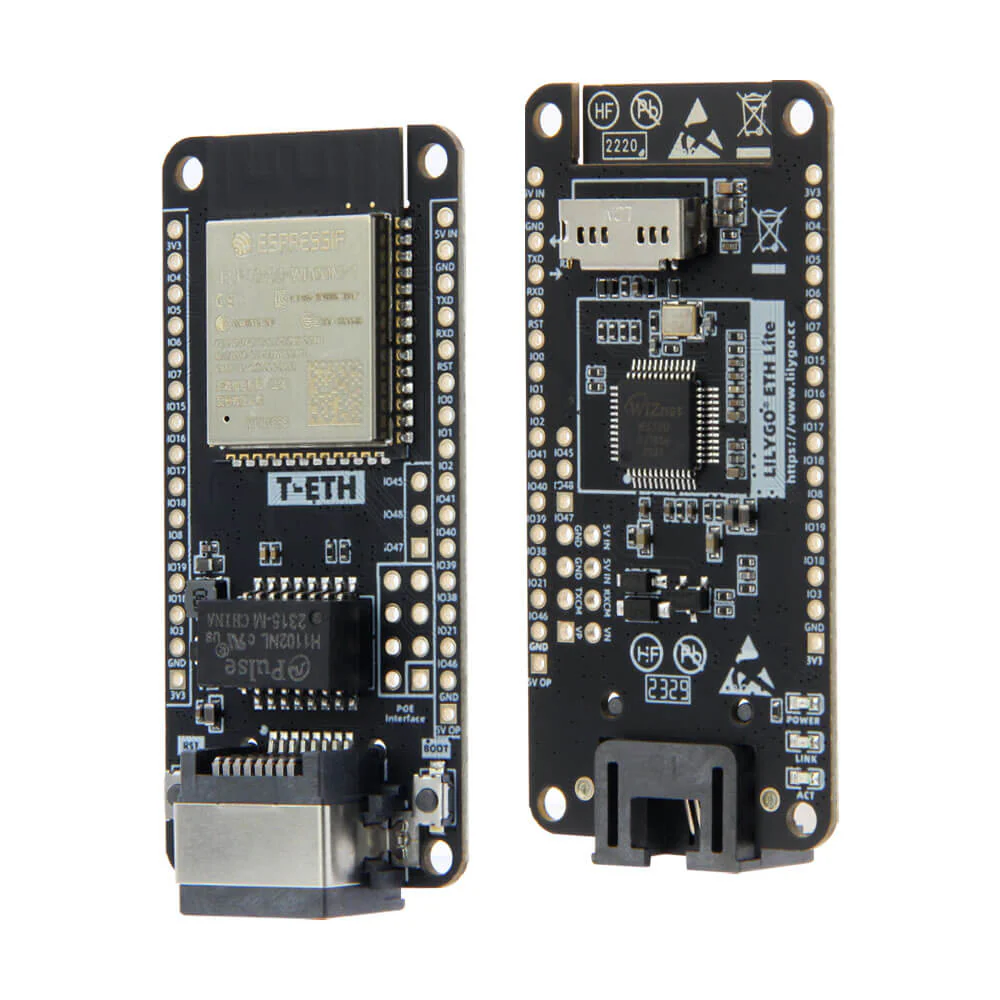

T-ETH-Lite
Specifications
| T-ETH-Lite ESP32 | T-ETH-Lite ESP32 S3 |
 |
|
| Specification Differences |

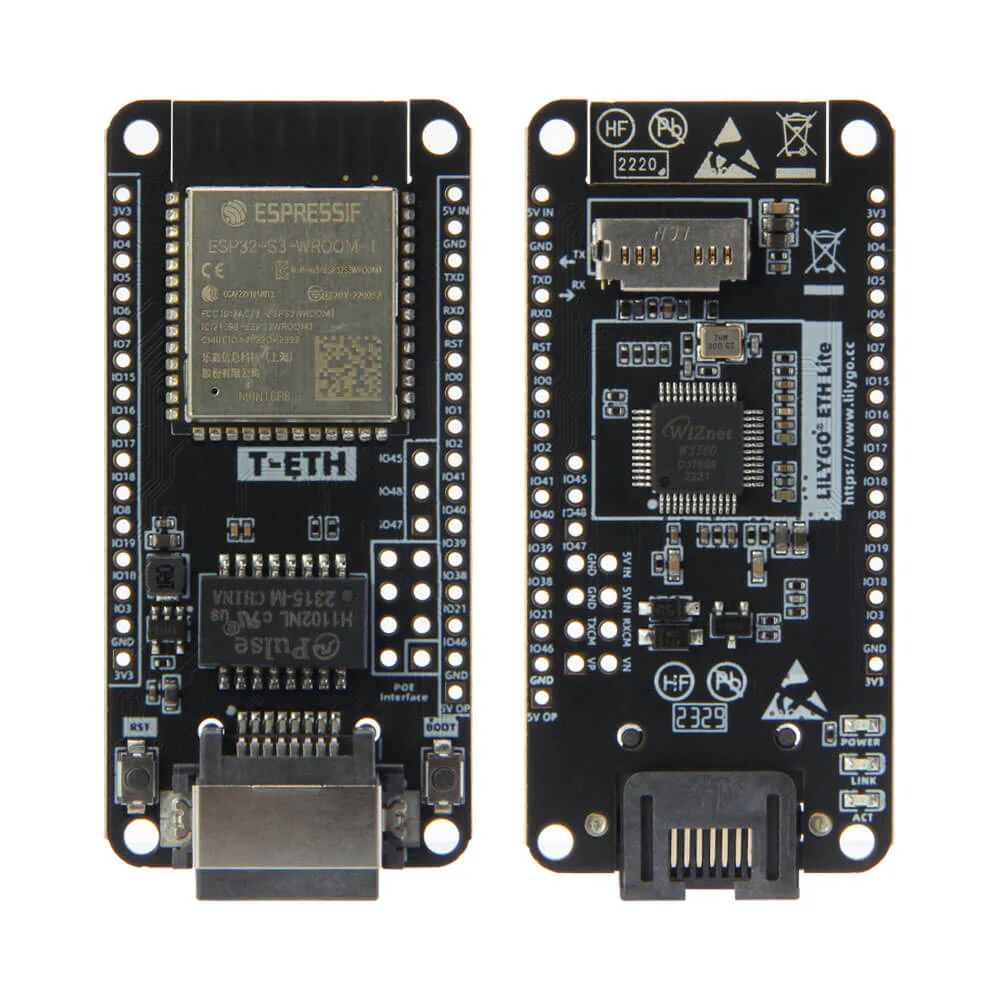

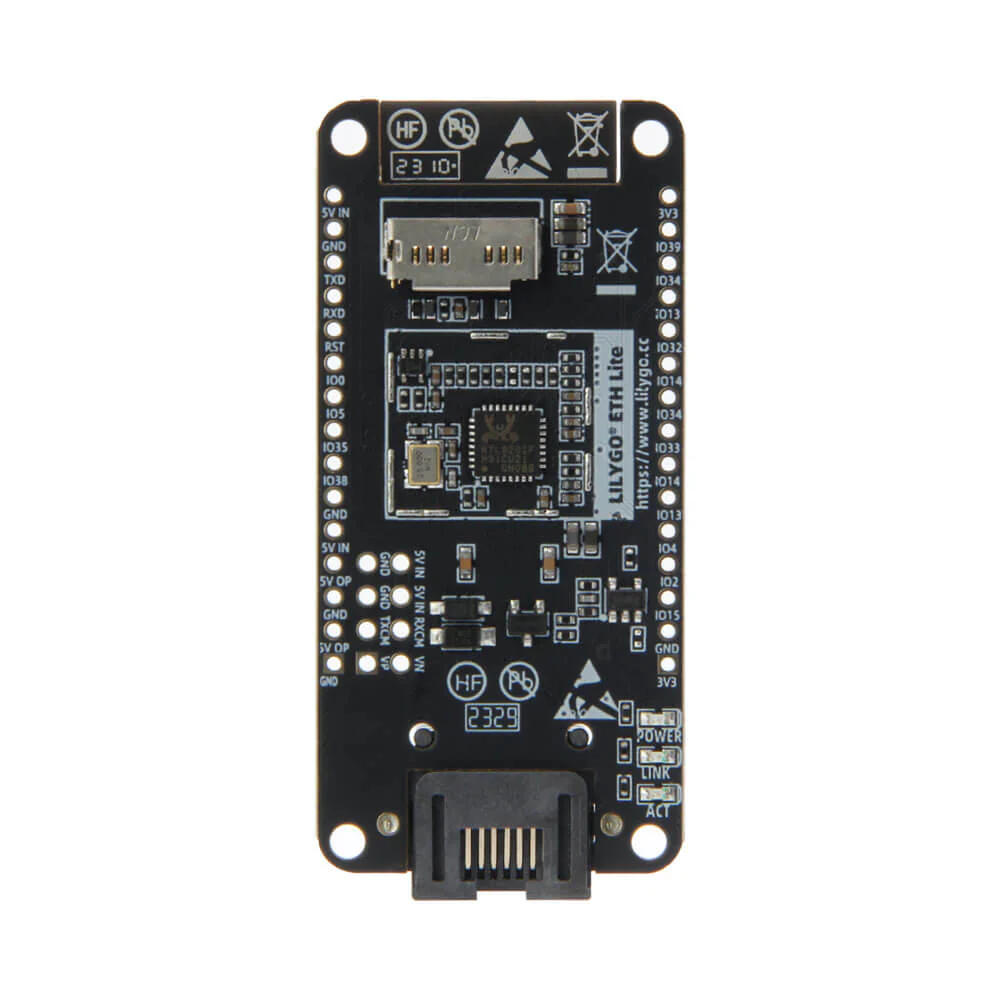

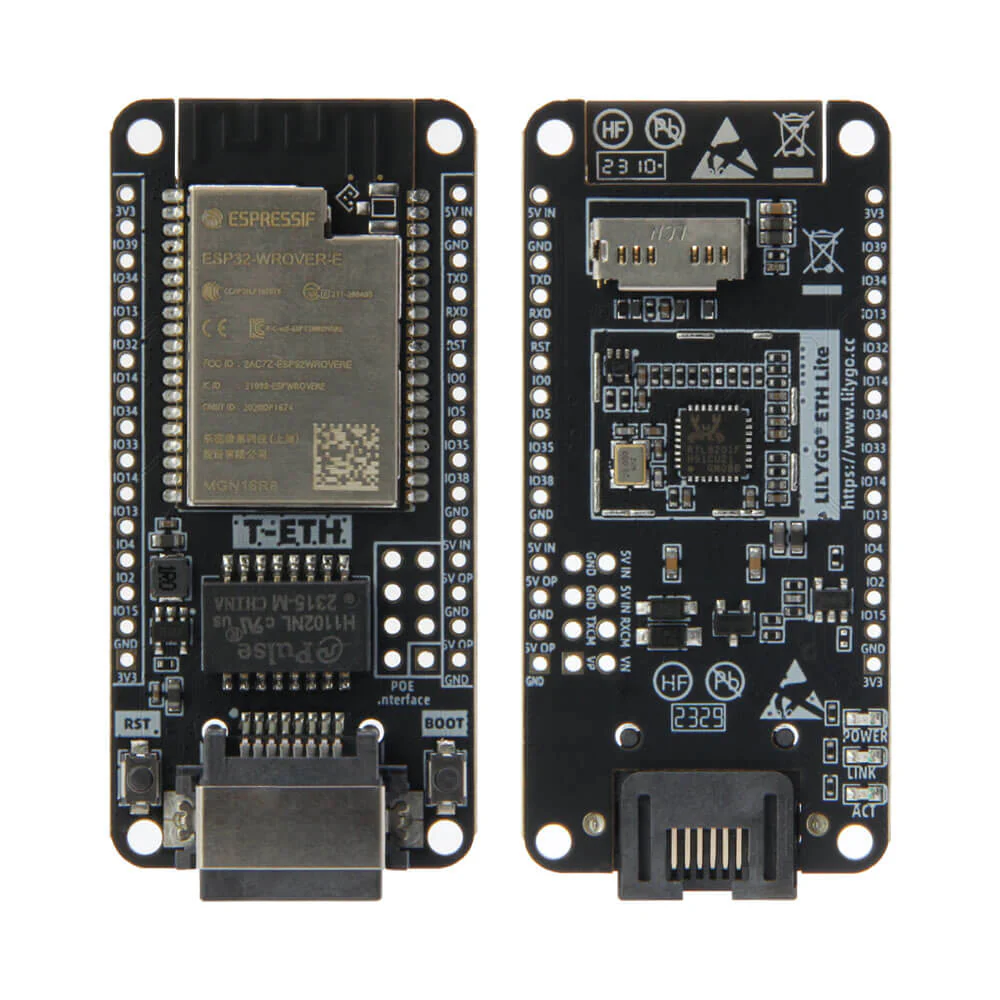

| MCU | ESP32-WOVER-E | ESP32-S3-WR0OM-1 |
| Ethernet | RTL8201 | W5500 |

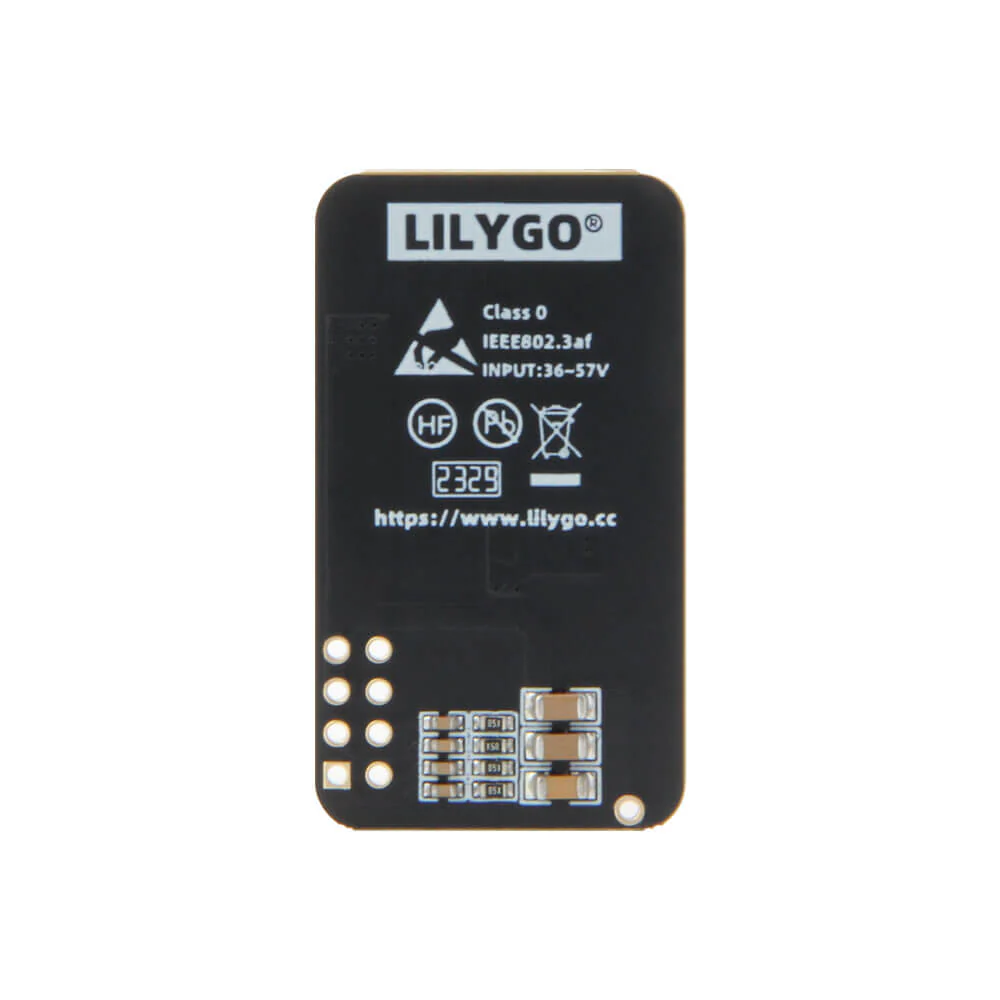

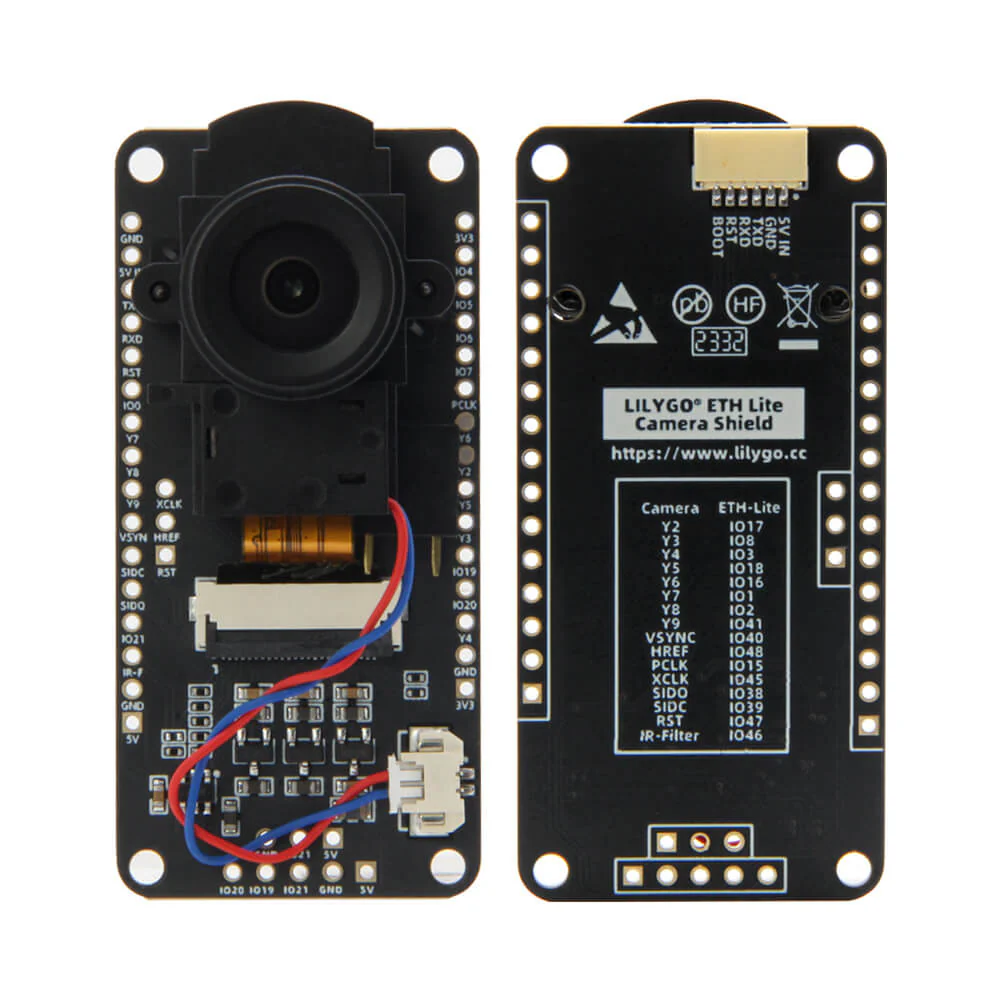

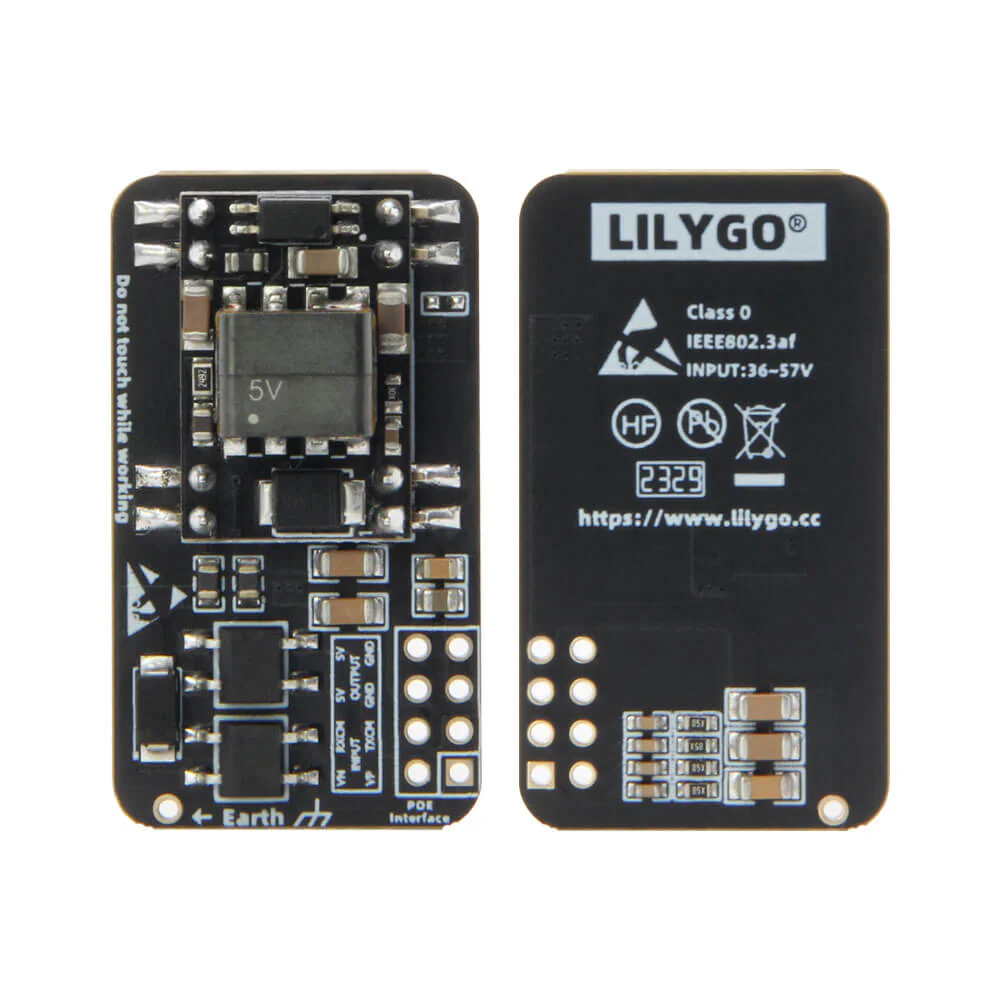

| Shield | POE-Shield | POE/Camera-Shield |
| Wireless | Wi-Fi: 802.11 b/g/n BR/EDRV4.2 +BLE |
Wi-Fi: 802.11 b/g/n BLE 5 + Bluetooth mesh |
| Button | Reset + Boot |
| Onboard | Ethernet + TF Card |
| Memory | Flash: 16MB, PSRAM: 8MB |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-ETH-Lite

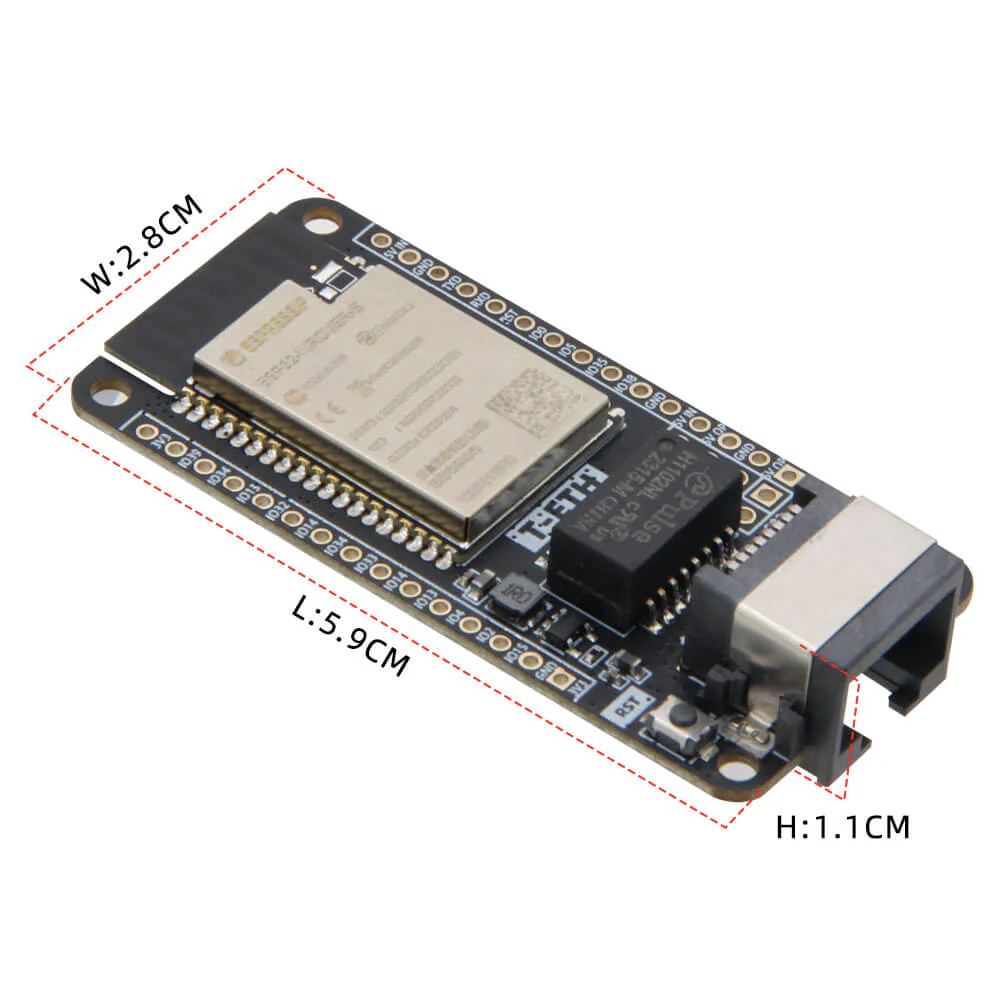

Size
Pin Diagram
More Details
Select T-ETH-Lite
From $3.93
Original: $11.24
-65%T-ETH-Lite—
$11.24
$3.93Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specifications
| T-ETH-Lite ESP32 | T-ETH-Lite ESP32 S3 |
|
|
|
| Specification Differences |
| MCU | ESP32-WOVER-E | ESP32-S3-WR0OM-1 |
| Ethernet | RTL8201 | W5500 |
| Shield | POE-Shield | POE/Camera-Shield |
| Wireless | Wi-Fi: 802.11 b/g/n BR/EDRV4.2 +BLE |
Wi-Fi: 802.11 b/g/n BLE 5 + Bluetooth mesh |
| Button | Reset + Boot |
| Onboard | Ethernet + TF Card |
| Memory | Flash: 16MB, PSRAM: 8MB |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-ETH-Lite
Size
Pin Diagram
More Details
