T-Zigbee

The T-ZigbeePA version adds a PA chip to the T-Zigbee version and replaces the antenna with stronger signal.

T-Zigbee is LILYGO®'s second motherboard with dual MCUs. (Notice: Two chips can work at the same time.)
Equipped with TLSR8258 Ultra-Low Power chip (Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN, HomeKit, ANT 2.4GHz Proprietary Standard) and ESP32-C3 chip (Support WIFI and Bluetooth).

Kind Tips



Specifications

MCU 1	TLSR8258 Ultra-low-power MCU supporting ZigBee and BLE5
Wireless	Support BLE 5 Mesh, Zigbee, RF4CE, Thread 6LoWPAN、HomeKit、 ANT 2.4GHz proprietary standard With PGA, AMIC, DMIC, 6-channel PWM function
Programmable LED	Red LED: PD04
Green LED	PA00
MCU 2	ESP32-C3 Equipped with RISC-V processor SoC Support 2.4 GHz Wi-Fi and Bluetooth 5 (LE) Main frequency 160 MHz, built-in 400 KB SRAM, 384 KB ROM
Programmable buttons	IO02
LED	IO03

Technology Support [Github]

If you need technical support please check the link to find more details.

T-Zigbee

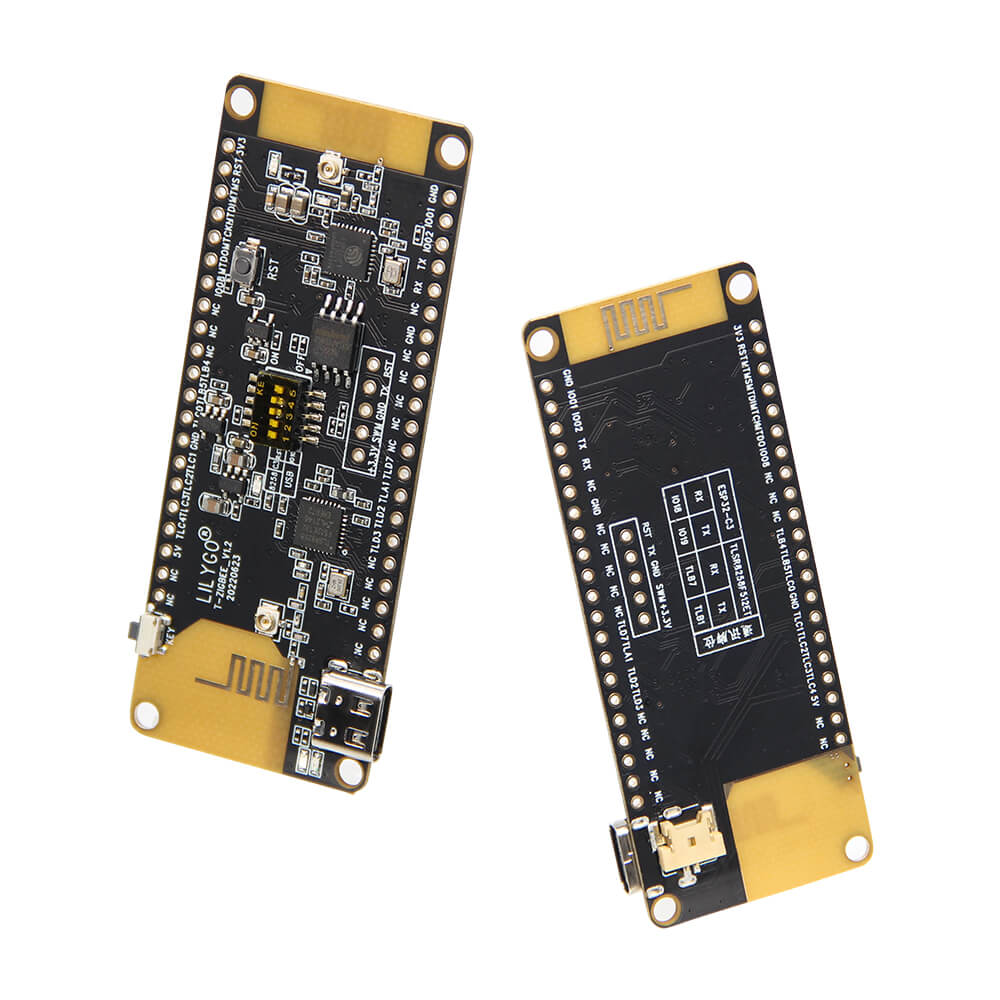

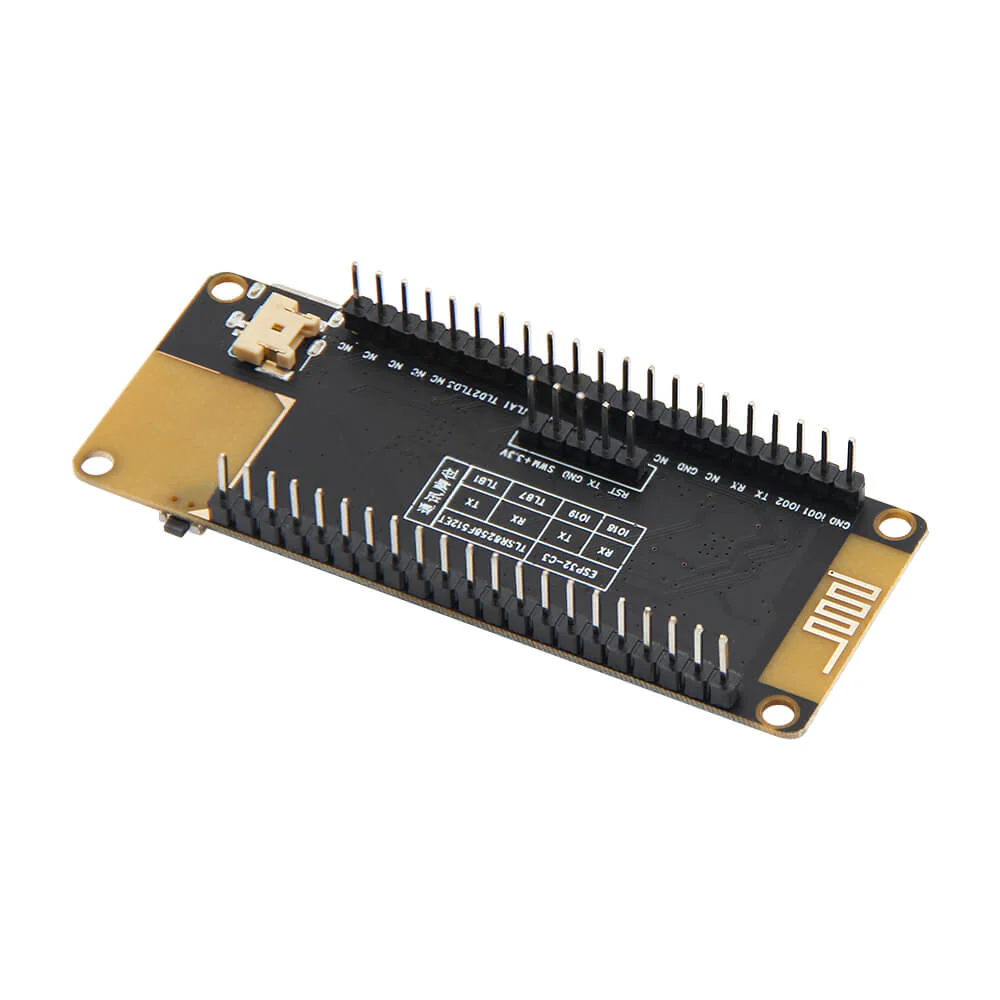

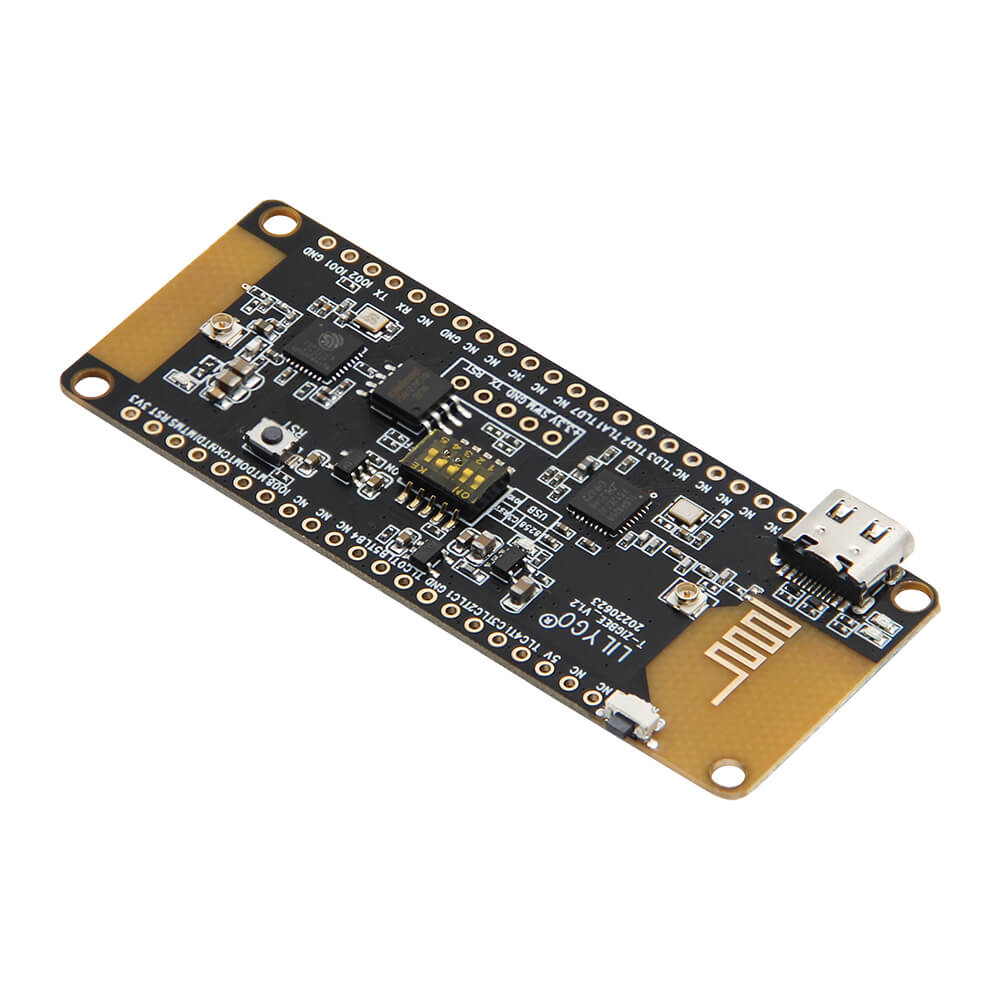

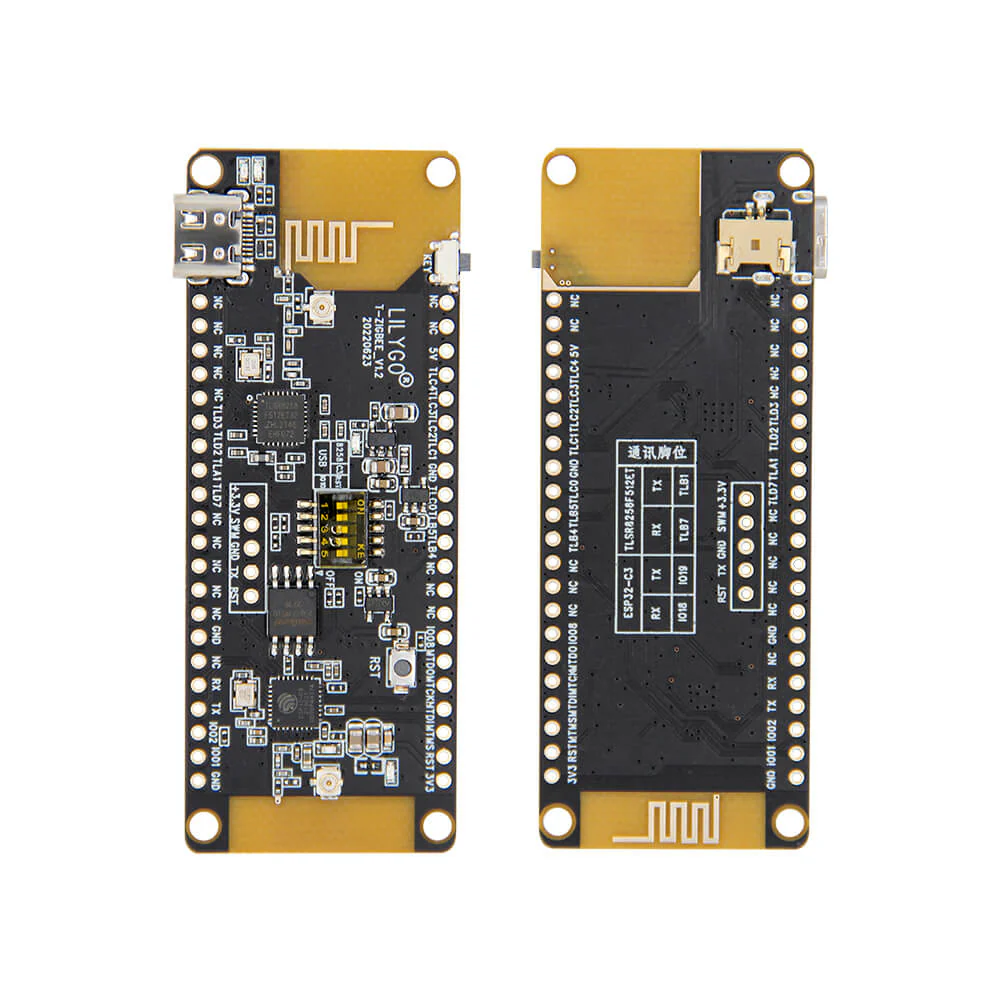

1. Appearance Details

2. Size

3. Pin Diagram

T-Zigbee

T-Zigbee PA

T-Zigbee+T-U2T



T-Zigbee PA
