T-Embed CC1101 Plus

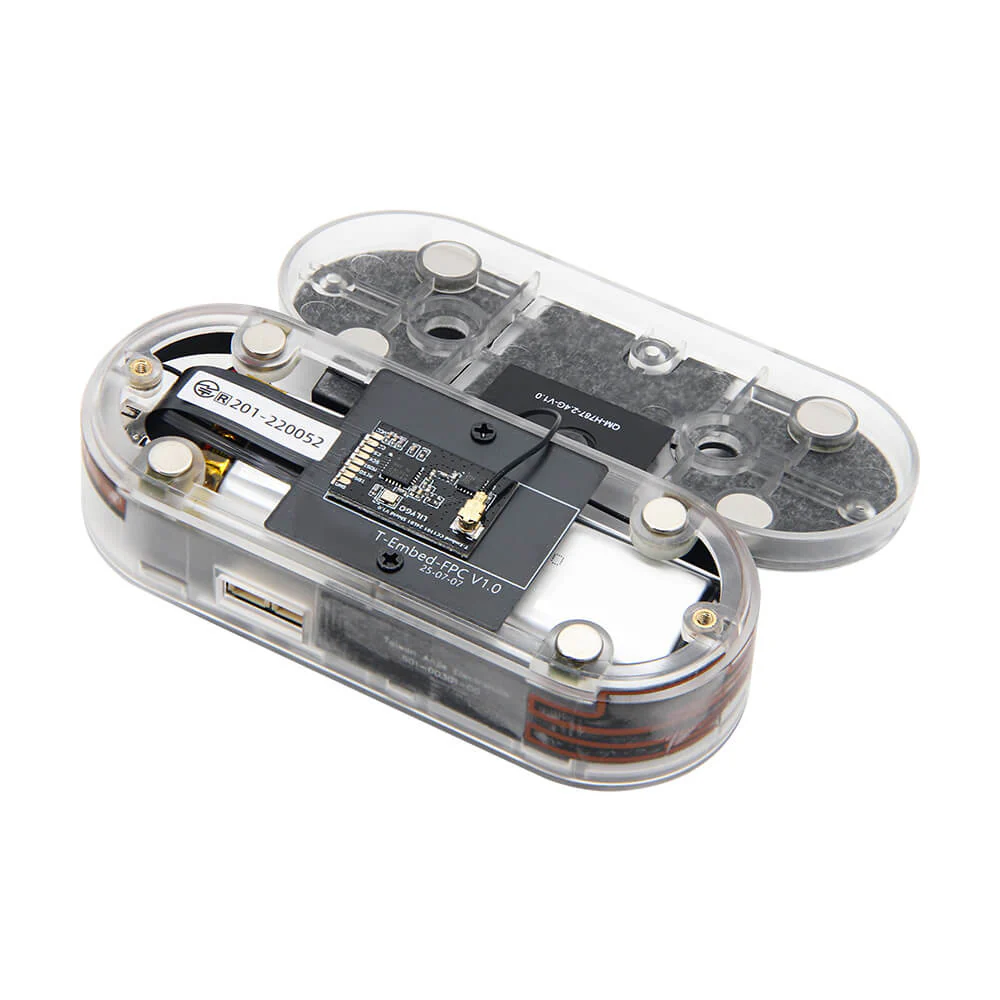

The T-Embed CC1101 Plus is simply the T-Embed CC1101 with an added nRF24L01 module.

Specifications

MCU	ESP32-S3 Dual-core LX7 microprocessor
Flash	16MB
Programming Platform	Arduino-ide、 ESP-IDF
RSRAM	8MB
Onboard functions	Reset + Boot Button , IR Transmit & Receive
Bat voltage detection	IO04
Wireless	Wi-Fi 802.11 b/g/n，BLE 5
Support	Worldwide 2.4GHz ISM band operation

1.9 inch ST7789V IPS color TFT LCD

Interface	SPI
Drive Chip	ST7789
Resolution	170(H)RGBx 320(V)

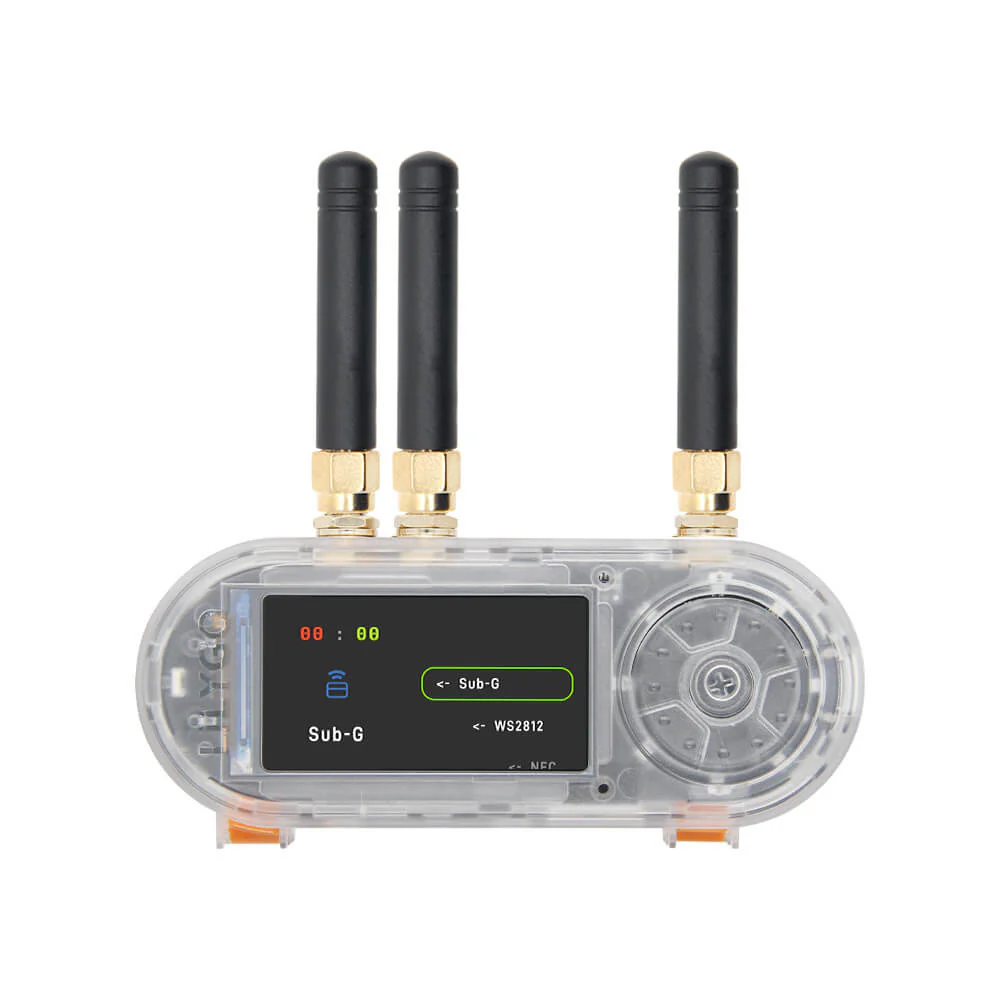

External Antenna Version

--- Tech Support---

ℹ️Product Information Check out our GitHub repository for sample code and more detailed information about this board. 💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box

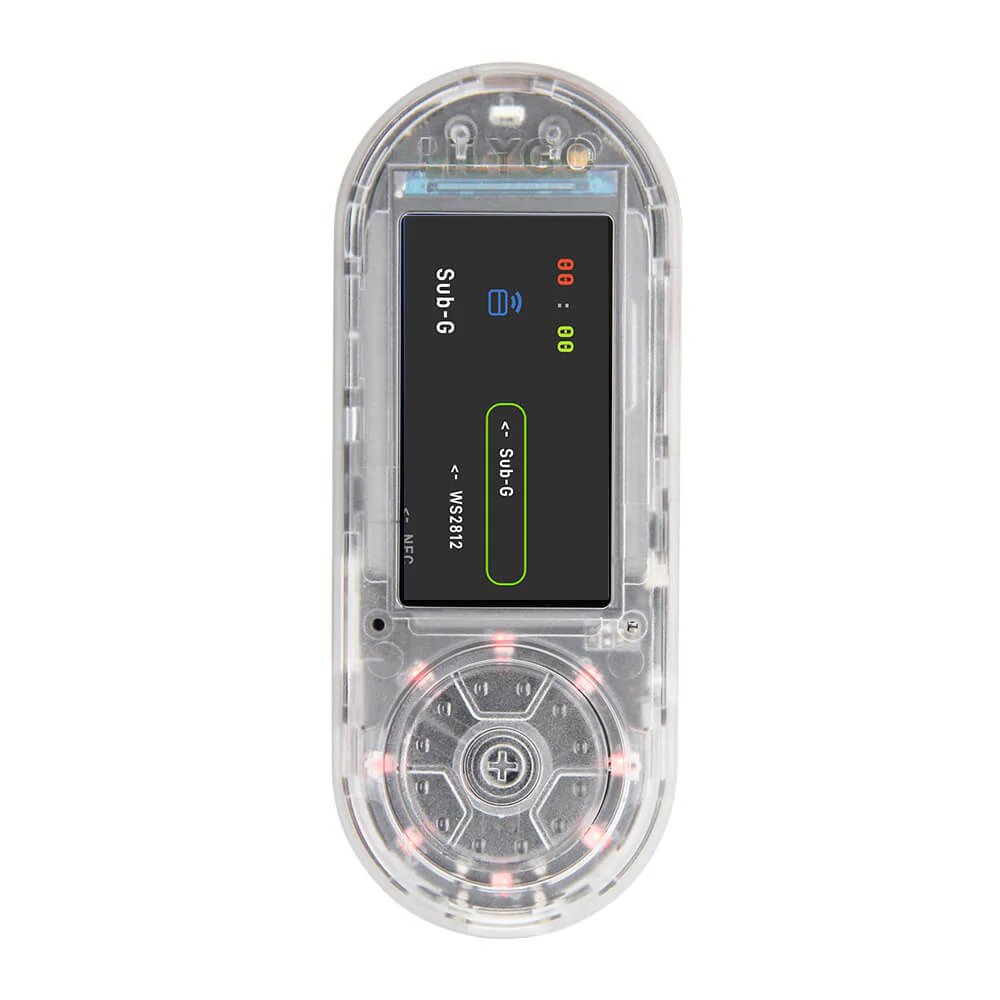

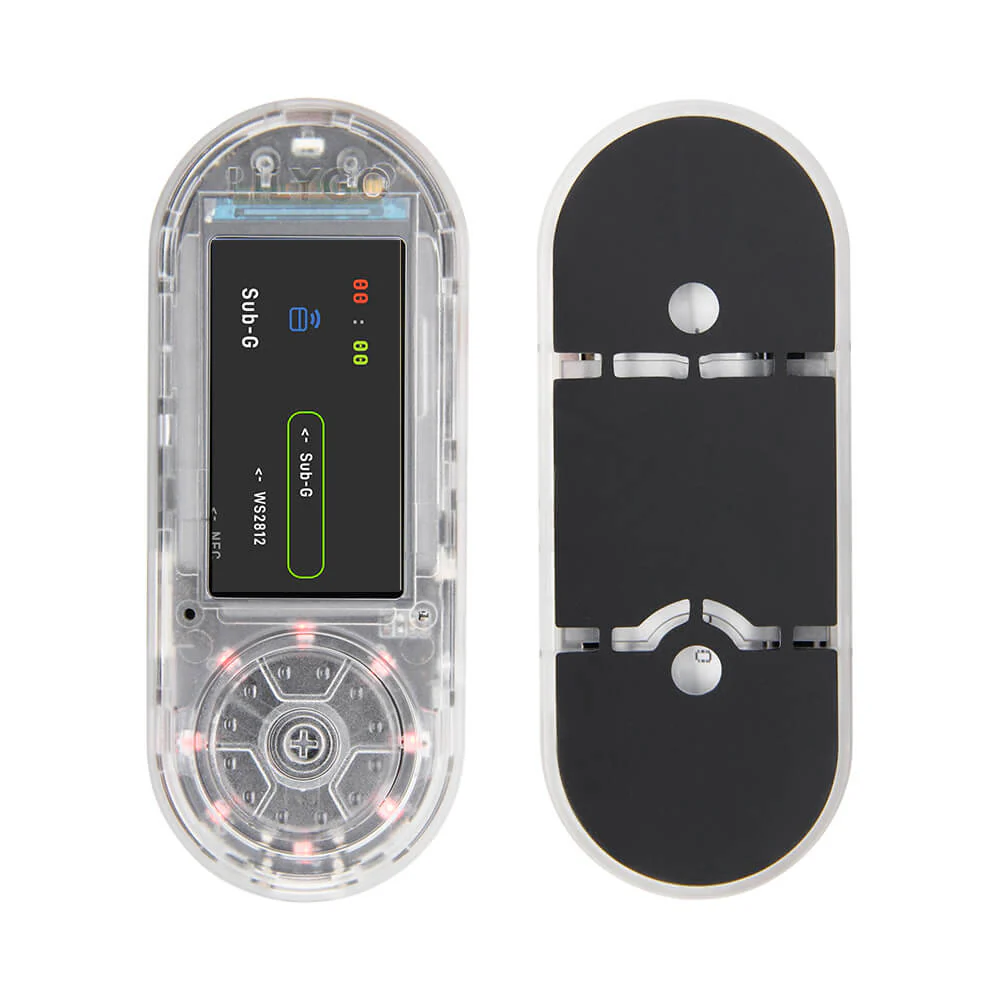

Internal Antenna [K268] Version

We do not recommend replacing the case, there is a high risk of damaging the unit and affecting the IR function.

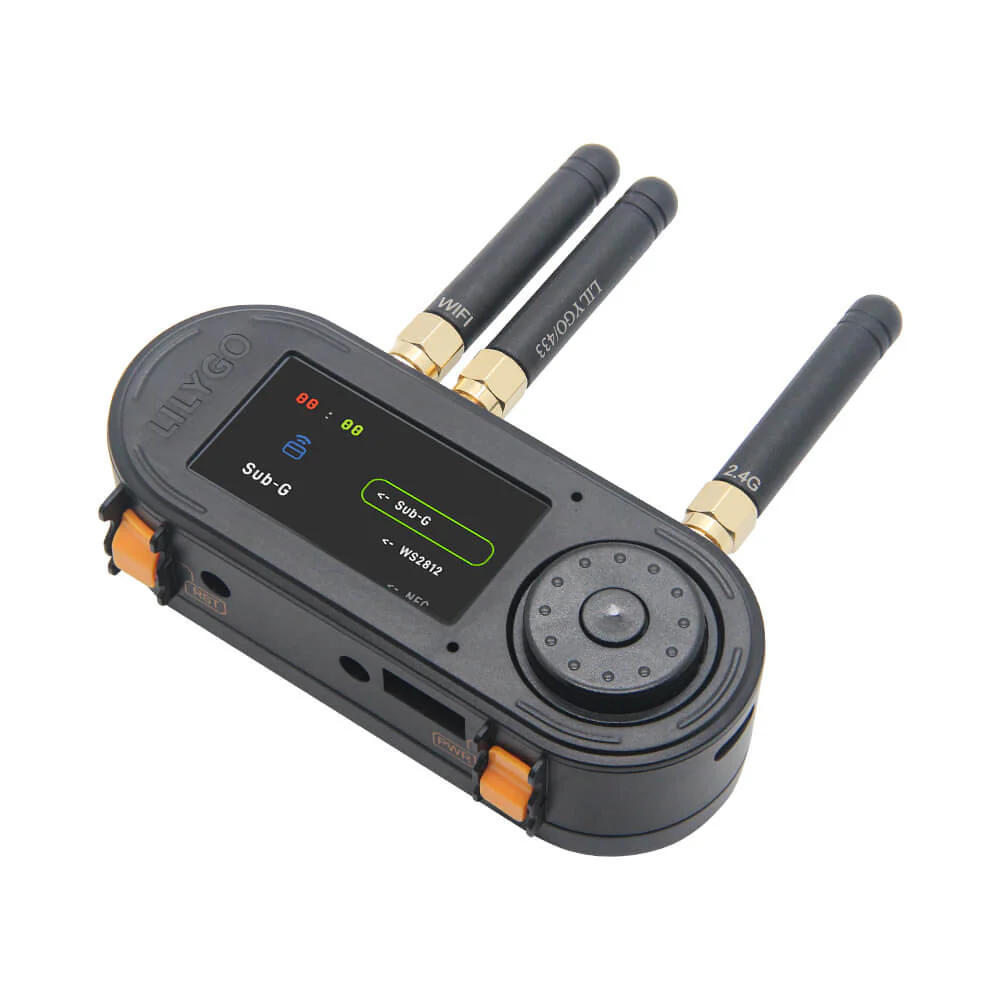

External Antenna [K268-01]
